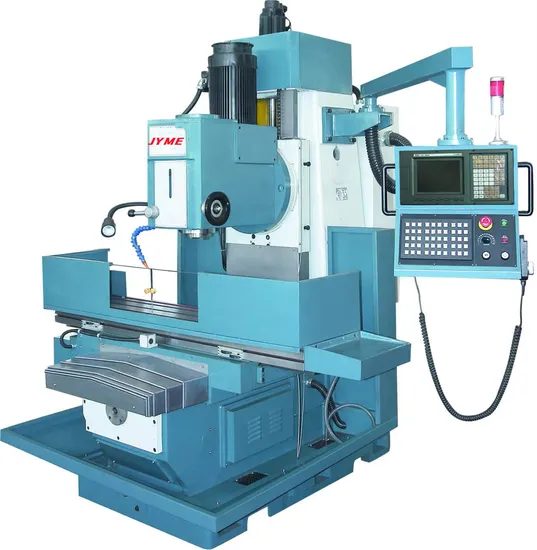

CNC Vertical Milling Machine Xk7150 Large Table High Rigidity Heavy Duty Cutting New Featuring Heavy Motor Engine Gear Bearing

Product Description

Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries. Universal bed-type machine tool
Reasonable structure
Good rigidity
High precision
Multiple functions: milling, drilling, tapping, reaming, boring
Ideal for industries: machinery, electronics, instruments, meters, molds, automobiles
The main performance characteristics: 1. Main components are made of high-strength materials and treated for stability.
2. Bed-type structure with a high-power, variable-speed milling head.
3. Milling head has a 20° working range and various feeding functions.
4. Spindle box allows for convenient movement and feeding.
5. Various feed options on the bed for different processing needs.
6. Large worktable travel and precision-treated guide rails for extended use.
7. Forced lubrication and adjustable cooling system for efficiency.
8. Ergonomic operating system with intuitive panel design.
Technical specifications:

Specification	XK7150	XK7150A
Table size(mm)	1600×400	2050×400
Max. table travel(mm)	1000/500	1400/500
T-slots(mm)	3/18/100	3/18/100
Spindle taper	7:24 ISO50	7:24 ISO50
Distance between spindle nose and table surface(mm)	100-630	100-630
Distance between spindle axis and colomn(mm)	580	580
Spindle speed range(r.p.m)	20-1600	66-960
Headstock rotation angle	±30°	±30°
Sleeve travel(mm)	100	100
Table feed range(mm/min)	L/C:23.5-1180	L/C:23.5-1180
	V:11.75-590	V:11.75-590
Rapid feed(mm/min)	L/C:2300	L/C:2300
	V:1150	V:1150
Main power(kw)	7.5	11
Overall size(mm)	2390×1860×2220	2800×1860×2220
Net. weight(kg)	4700	5100

---
