Industrial Warehouse Pallet Storage Solution Drive in Style Racking System

Product Description

Industrial Warehouse Pallet Storage Solution Drive in Style Racking System Product Description:

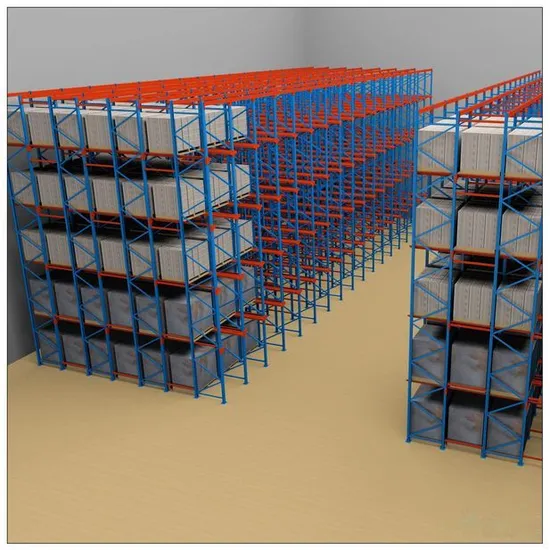

iRacking drive-in rack is designed for the storage of homogenous products. It accommodates a large number of pallets for each SKU.
The most high density system provides the maximum space efficiency and high volume storage of block stacking, with easy access to pallets.
Features of pallet racks:
1 Good solution for storage of homogenous products with a great number of pallets.
2 Very highly efficient use of warehouse space.
3 Loading capacity 500 kg-1500kg/pallet as general.
4 Load management: FILO (First In, Last Out) or FIFO (First In, First Out).
5 Rails adjustable optimize space utilization.
6 Easy assembly.
Why choose iRacking's racks?
1. As a leading racking manufacturer in China, we enjoy 10+ years of experience.
2. High quality raw material of steel Q235 is purchased from Jiangsu Shagang Group Co. Ltd., the top 5 steel manufacturer in China.
3. Industry's first contract tracking system helps you know the updates of your purchased products.
4. Certification: ISO9001:2008, SGS, CE, and AS 4084-2012

Material	Steel Q235
Loading Capacity	Customized and up to 4,000 Kg UDL/level
Racking Height	Customized and up to 11,000 mm
Racking Depth	700-1,200 mm
Beam Length	Customized and up to 3,600 mm
Racking Finish	Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated)
Packing Details	Standard export seaworthy packing

*UDL = uniformly distributed load
Product Details:
Frames
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings
Top beams and top bracings are used to increase integrity and stability of the racking system.
Who We Are
iRacking Co., Ltd. (NANJING IRACKING MANUFACTURING CO., LTD.), located in the city of Nanjing, China, is a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories, and storage solutions and services.
Not only can we help to improve your partial storage work and operation speed, but also do the whole work of building a logistic center for you. We provide more than storage equipment.
Our Service:
1. Quick response: quick response during all process, any problem, contact freely;
2. CAD drawing: with warehouse size, pallet size and storage needs, we will provide you detailed technical drawing for your warehouse. And installtion instruction will be be provided to guide the installation work;
3. Fast delivery: strictly comply with the delivery time of the contact;
4. After sale technical support: any product feedback will be replied within 24 hours.
Packing&Shipping:
Products will use our standard export packing. Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher cost of in-land trucking transportation from our factory.
FAQ
1. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Nanjing City, Jiangsu Province, China, close to Shanghai. You can fly to Nanjing or Shanghai airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time?
A: It depends on the order quantity and racking types. As general, within 25 days, for ordinary order quantity of Storage Pallet Racking System.
5. Q: Which port will be used as loading port?
A: Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher in-land trucking transportation costs from our factory.
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You can also get the latest information on our contract tracking system.
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
8. Q: Is Galvanized Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
9. Q: How can I get your quick quotation on my pallet racking project?
A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know following info:
1.Required Pallet Racking Dimension: Height*Depth*Length?
2.Number of Levels?
3.Loading Capacity of each level?
4.Racking Quantity?
If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.

---
