Middle Speed Coffee Cup Making Machine

Product Description

Automatic Single PE Coated Paper Cup Machinery Product Description

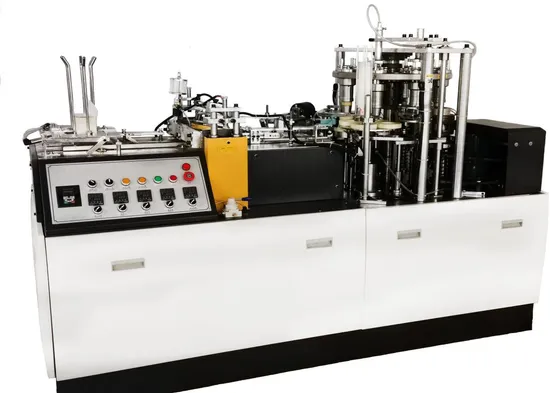

CW-800 Paper Cup Making Machine is a multi station high-speed automatic machine which producing both single and double PE coated drink cups,ice cream cups through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.The machine adopting hot air system,full-automatic failure warning,counting,detection,stopping,etc.
Product Parameters

Name	Open Cam Single plate Paper Cup Machine
Model	CW-800
Paper Cup Size	3-16OZ
Raw Material	One-side PE
Speed	80-90 pcs/min
Suitable paper weight	150-180g/m2;±20g/m2
Voltage supply	380V,50HZ
cup size	bottom35-70mm,top45-90mm,high32-135mm
General power	4.5 kw
Net weight	1680kg
Measurement (mm)	L:2115mm;W:1000mm;H:1700mm
Cup Side Sealing	Copper bar heating
Bottom Knurling	Heating

ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
