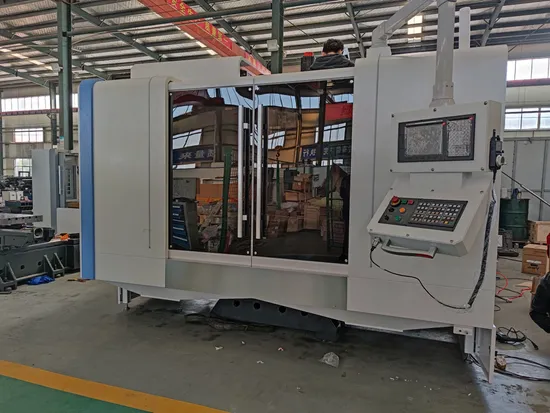

High Efficiency CNC Center Drilling&Milling Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC650L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 7500W
Weight: 3000kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
CNC machine center
Vertical machine center
Taiwan spindle, Taiwan linear guideways

NO.	ITEM				Specification
1	Table size L(mm)× W(mm)				900× 360
2	T slot QTY /width/interval distance(mm)				3-14-120
3	Maximum load(KG)				400
4	X travel (mm)				650
5	Y travel (mm)				380
6	Z travel (mm)				480
7	Spindle nose to table (mm)				100-600
8	Spindle center to column (mm)				410
9	Spindle taper				BT40/120
10	Max. spindle speed (Rpm)				8000
11	Main motor (kW)				7.5
12	Feed motor		X torque(N. M)		6
			Y torque(N. M)		7.7
			Ztorque(N. M)		7.7
			Max. install size		7.5
13	Rapid moving speed (m/min. )				12/12/10
14	Cutting speed (mm/min)				1-6000
15	Ball screw (diametermm/pitch )mm				32/10
17	Accuracy	Positioning accuracy (mm)			0.016
		Repeatability accuracy (mm)			0.008
18	Tool changer	Funnel type (optional ) BT40			10 or 12
19	Air pressure Mpa				0.6
20	Machine weight (kg)			Frame	2500
				Complete machine	3000
21	Machine overall size: L(mm)× W(mm)× H(mm)			Frame	2200× 1550× 2000
				Complete machine	2500x2250x2300

CNC LATHE MODEL VMC650 GSK808Dcontrol Sinmense system control

Full metal cover and inner cover 2----16 tools ARM type tool changer 3---Siemense spindle 4---cylinder 5---oil pump 6---water pump 7-air system

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
