Automatic PVC Rapid High Speed Shutter Door Stainless Steel Frame High Speed Fabric Fast Door Driveway Gate Electronic Roller Shutter Cleanroom Door

Product Description

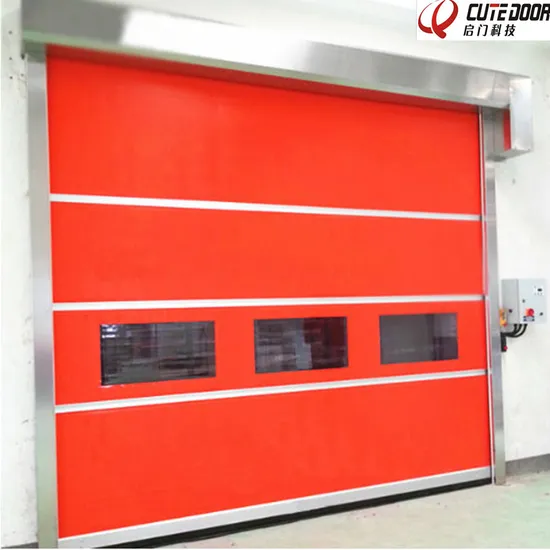

Product Description QM CUTEDOOR QFD-120 HIGH SPEED PVC DOOR
Suitable for a wide range of indoor, clean warehouse and any kind of productive plant applications.
This reliable door solution for goods flow ensures smooth and quiet operation and prevents dirt, dust, and air transfer between internal spaces.
0.8-1.2mmPVC curtain, track, wind-resistant ribs, transparent window, top cover, sever motor, control box, infrared safety photoelectric, control system etc Opening modes: Button, Radar, geomagnetic sensor, remote control, rope, access control, interlock

Maximum door size	Width 4000mm*height 4000mm
Speed of opening and closing	0.6~2.0m/s; Adjustable
Curtain fabric	Imported high density industrial fabric, thickness 0.8mm~1.2mm
Tensile strength	5700/5100N/20cm,Tear strength 900/800n
Track and outer cover	The frame material is galvanized steel, the guide material is reinforced polyethylene, fixed in the C type track, can achieve convenient maintenance (Optional: aluminum alloy or stainless steel)
Driving system	Power 750w, protection class IP 65
Control system	Microcomputer frequency conversion control the system,can slowly up slowly stop, operate smooth .
Standard probe configuration	Photoelectric protection on door rails
	WDD wireless security soft edge protection system
	DBD door curtain protection system
Operating temperature range	+5ºC~40ºC

Our Advantages ADVANTAGE
Energy-saving:
The door save the energy through two aspects,at first, the unique open / closed design and multicolored interlock function greatly shortens the cycle of opening and closing,for the door of food processing enterprises,shortening the cycle of opening and closing can reduce temperature loss, thereby improving the efficiency.
Sealing property:
Excellent sealing is also one of the reasons why many customers choose it.In the food processing workshop, the requirements of the internal health environment of the workshop are relatively high.The gate of the patent track and seal design, can effectively reduce dust and dirt into the workshop, improve the cleanliness of the food processing workshop.
Easy to install and save space:
The installation is simple, so the maintenance is more convenient,we just need a small installation space, can adjust the installation plan according to the actual usage door and ownership.Compared with other traditional workshop internal flat type, hand pull door type in the workshop ,can save the space around the door,compared with the traditional door is also more flexible , almost applicable to a variety of industries on the internal requirements of the workshop.
Security:
The door has a soft bottom without any hard substance.when the door open or closed in the process if people and objects are entering suddenly,doors will automatically rebound, put an end to the curtain under pressure caused by the accident,The curtain itself is also very safe, it is flexible and does not contain any hard parts, can effectively guarantee the safety of people and objects as well as the door itself.
Application scope:
Applicable to a variety of industrial factory, logistics channels or inside of the workshop, also can be used in the outside of the door due to the high speed opening and closing speed and good wind resistance.
Why choose us ?
The company covers an area of 10 acres, plant area of10000 square meters.
Our History:
Predecessor is one of the four biggest rolling shutters factory in China_Zhejiang zhengxing Roller shutter Factory.
Our R & D team:
We have a very professional technical team, have developed a large number of product patents.
F A Q: 1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 15 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.

---
