Large Capacity Double Roll Crusher with ISO Certificate

Product Description

Product Description

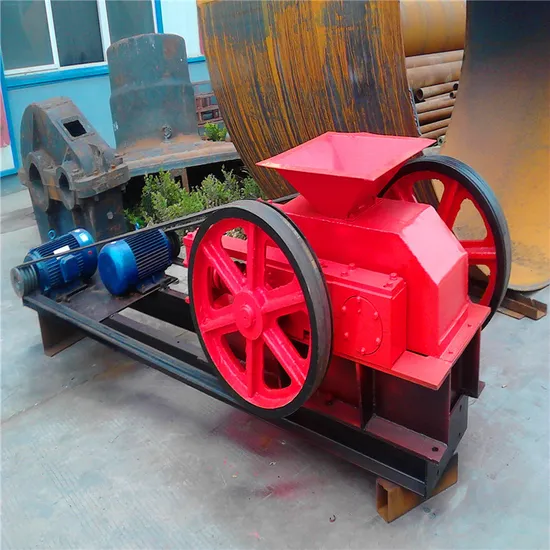

High efficiency Coal gangue double toothed roll crusher
Product Description
Tooth roll crusher for coal, metallurgy, mining, chemicals, building materials and other industries more suitable for large-scale coal or coal preparation plant (including gangue) broken. Roll crusher capacity, coupled with the limited pitch type fluid coupling between the motor and reducer to prevent power overload, overload sensors, safe and reliable. Roll spacing hydraulic adjustment, toothed roller bearing concentrated lubrication. Tooth design optimization, select the shear pull crushing, high efficiency and low consumption, the grain evenly.
Working Principle
Roller Crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc.
The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.
Roller Crusher Advantages:
1. It gives a very fine product size distribution and produces very little dust or fines.
2. It is effectively used in minerals crushing where the ores are not too abrasive and it is also used in smaller scale production mining of more abrasive metal ores, such as gold.
3. Coal is probably the largest user of roll crusher currently. Coal plants will use roll crushers, either single roller or double roller crusher glass. Usually, this crusher will have teeth or raised forms on the face of the roll. (Double teeth roller crusher used for minerals and metal ores have smooth faced rolls.)
4. Besides, this roller is easy to operate, low in consumption, stable in running and simple in fabrication.
5. It is stable operation, easy maintenance, low cost, output size adjustable.
Main technical parameter

Model	Roller Diameter (mm)	Roller Length(mm)	Max. feeding size(mm)	Discharging size (mm)	capacity (T/H)	motor (KW)	weight (T)	Dimension(mm)
2PG400*250	400	250	350	15-125	20-30	11	2.8	2300*1050*900
2PG400*500	400	500	350	15-125	30-50	22	3.6	3000*1400*1200
2PGC450*500	450	500	400	15-125	30-60	15	4.5	2260*2200*766
2PGC600*750	600	750	500	15-150	60-100	30	7.2	2780*3065*1310
2PGC600*900	600	900	500	15-150	80-120	37	7.8	4500*1900*1350
2PGC900*900	900	900	500	15-150	100-200	45	13.5	3945*3405*1895
2PGC1015*760	1015	760	700	15-150	150-200	90	18.5	2780*4100*1550
2PGC920*1200	920	1200	800	20-150	135-225	75	16.5	3848*34800*1394
2PGC1200*1500	1200	1500	1000	30-300	150-250	110	26	3370*3390*1945

---
