2 Wire Conventional Photoelectric Smoke Alarm for Fire (ES-5010OSD)

Product Description

Item Name
2 Wire Conventional Photoelectric Smoke Alarm for Fire (ES-5010OSD)
Main Features Voltage: non-polar input:DC 9V~35V; SMT adopted,high stability; Anti-RFI,Dustproof,mothproof and anti-light interference design; MCU processing adopted,eliminate false alarm; Remote LED indicator. Power-off reset. detection sensitivity:2.06%/ft Dimension: Φ104*51mm .
Technical Specification
Can work without study code,DC power supply can be connected directly.When it is working, the working LED flash;when it is alarm ing, the alarm LED on.
1:Power off / reset
2:Infrared photoelectric sensor
3:Smart Logic Control for reduce false alarm
4:Net work output / LED alarm
5:SMT technique for stable
6:Dust-proof,mothproof,anti-whitelight design
7:Metal shield for anti RFI (20V/m 10MHz~1GHz)
2 Wire Smoke Detector Connection
4 Wire Smoke Detector Connection
Installation Base

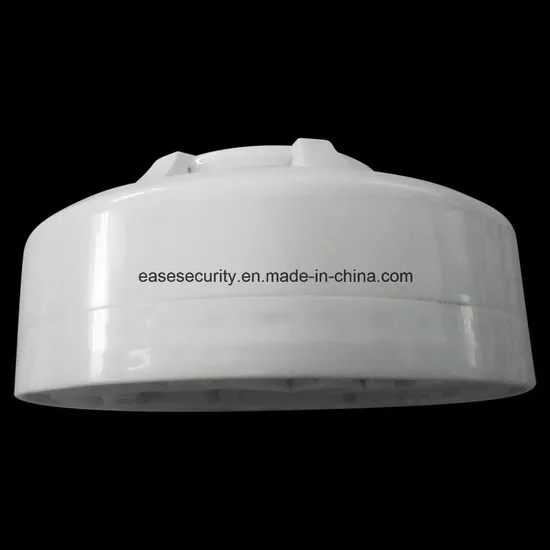

Side Look
Can WOrk WithFire Alarm Panel
Product Introduction
This product named Photoelectric detector detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don't affect the smoke into it. While have no smoke, the diode can receive very weak infrared light. When the smoke entering the chamber, diode can receive more and more light, when the smoke attains the certain density, the detector can give out alarm signal. In order to reduce the interference and lower power consumption, the emitting circuit adopts the pulse signal. The detector adopts the special structure design and ASIC, has the dustproof, mothproof and anti outside light interference feature etc. The detector is suitable for detect the smoke in house, shop, hotel, restaurant, office building, school, bank, library, computer house and storehouse etc.

Type	Output	Power
4 Wire	Relay Output	9-35V dc
2 Wire	Remote LED Indicator	9-35V dc
Wireless	RF signal	9V battery

---
