Jotun Hot Sale Stainless Steel Plate Triangle Wire Drawing Deburring Machine

Product Description

Product Description

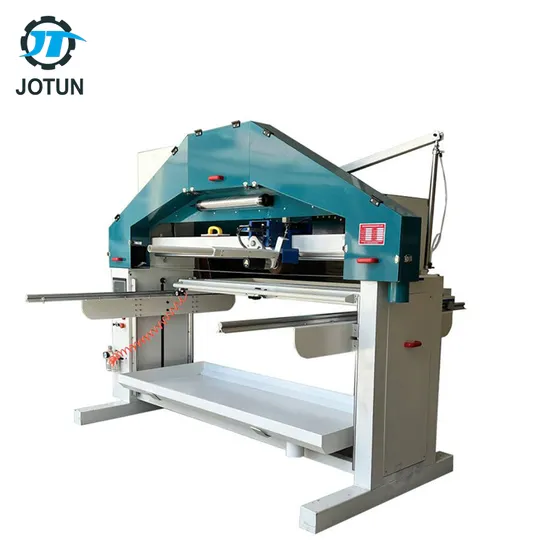

Triangle wire drawing machine
Dual-function grinding and drawing machine.With abrasive belt and drawing wheel/hairline wheel. Both control stick and button,save space .The platform is manually pushed and pulled forward and backward. The forward and backward push and pull can be locked with one key. The specific tooling fixture is made by the buyer according to the product requirements.
Product Parameters

Model	JT-2300	JT-1500
Grinding max width	2300mm	1500mm
Grinding height	0-600mm	0-600mm
Worktable size	2300*800mm	1500*800mm
Grinding motor	3kw+0.75kw	3kw+0.75kw
Servo motor	0.65kw	0.65kw
Belt size	6580*100mm	5700*100mm
Belt rotating speed	0-6000rpm/min	0-6000rpm/min
Machine size	3180*1600*2050mm	3180*1600*2050mm
Machine weight	1200kg	800kg
Grinding material	sanding belt/hairline wheel	sanding belt/hairline wheel

Product Feactures
1. Sanding belt is pressed down to the surface of the product and the size is manually controlled.
2. Sanding belt speed is adjustable.It adapt to workpieces of different materials and thicknesses. The belt has a large cutting force, which is conducive to grind weld scars and can alsodraw lines. Snowflake pattern and straight lines can also be drawn.
3. The drawing wheel is pressed down to the surface of the product by manual control of whether to press down and the size of the pressure. The wheel speed is adjustable. Different speeds are suitable for workpieces of different materials. The drawing wheel can be pressed on the sanding belt to draw a snowflake effect. It can also switch to separate drawing with one button to draw a straight line effect. A fine-mesh drawing wheel can be used to grind a polishing effect. Detailed Photos


Packaging & Shipping
After the machine finished, we will split the product.The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product.
Company Profile
Since the establishment of the company in 2013, Our company has provided high-quality and best-price metal polishing machines for countries around the world, which are suitable for food and beverage, pharmaceutical, chemical, water treatment, new energy, etc. industries.
China Jingteng Polishing can provide you with different metal surface polishing machines, tank polishing machines, dish head polishing machines, tube polishing machines, sheet polishing machines, metal deburring machines, CNC polishing machines, etc.
All machines provided by China Jingteng have the following great advantages,
1. We have our factory and a professional design team, we can design suitable high-quality machines according to each customer's requirements.
2. We have local technical support services in some countries and can provide local installation and commissioning services.
3. Our machines can help end customers greatly improve polishing efficiency,
FAQ
Q:Why choose our machine?
A:We are professional metal surface finishing machine supplier,So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Do you have CE certification and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.Q: If we are interested in your machine, how do we choose?A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.Q: How about warranty?A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.Q: Do you have after sales support?A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Q:How to get offer?
A:Provide your workpiece parameters:meterial,diameter,thickness,lenght,weight.
