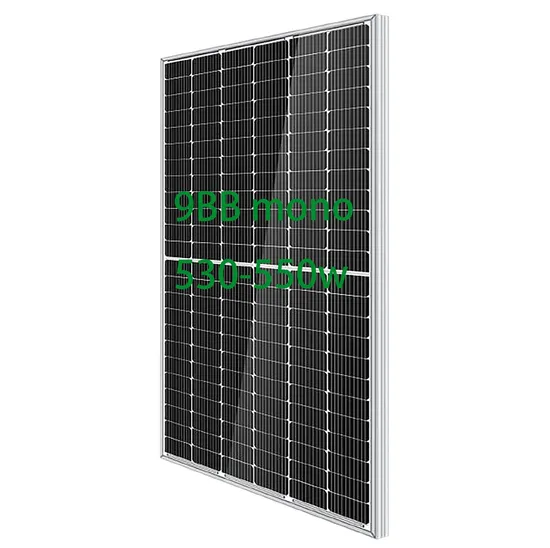

High Efficiency 530W 535W 540W Half Cell Perc Mono Photovoltaic Module 550watt PV Solar Panels

Product Description

SPECIFICATIONS

Weight	29kg
Dimensions	2279mm*1134mm*35mm(1.5mm Cell Gap)
Cell Dimensions	182*182mm
Cell Amount	72*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Frame	Aluminum Alloy
Cable	4mm2,Landscape: N 1400mm/P 1400mm Portrait: N 200mm/P 300mm
Connector	MC4 compatible
Application Level	Class A

ELECTRICAL PARAMETERS AT STC

Power	530W	535W	540W	545W	550W
Open Circuit Voltage	49.00V	49.20V	49.40V	49.60V	49.80V
Short Circuit Current	13.76A	13.81A	13.87A	13.93A	13.99A
Maximun Power Voltage	40.80V	41.00V	41.20V	41.40V	41.60V
Maximum Power Current	13.00A	13.05A	13.11A	13.17A	13.23A
Module Efficienty	20.7%	20.9%	21.1%	21.3%	21.5%

TEMPERATURE CHARACTERISTICS

NMOT	41±3ºC	Temp Coefficient of ISC	±0.05%/ºC
Temp Coefficient of voc	-0.28%/ºC	Temp Coefficient of Pmax	-0.36%/ºC

PACKING CONFIGURATION

Modules/Pallet	31 Pieces	Modules/40'Container	620 Pieces
Packing Description	20 Pallets, Total=(31+31)x10=620 Pieces

MAXIMUM RATING

Output Tolerance	0~+5W
Operating Temperature	-40ºC~+85ºC
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	25A

Related products
What we also can do
Application
Production process
Certification
Package and shipment
Our advantage
GRADE A SOLAR CELLS: to ensure all are high efficient grade A solar cells. HIGH QUALITY: fully automated production processes, each solar panel is tested strictly. PRICE ADVANTAGES: good price, low cost as industry chain integration with scale effect. AFTER-SALES ADVANTAGES: 24 hours service on line, timely and fastly solve porblems. FACTORY ADVANTAGES: more than 10 years experience in PV industry, with 25,000 square meters production base.
FAQ Q : How can we guarantee quality?
A : Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q : Why should you buy from us not from other suppliers?
A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Intenergy modules have been used in residential,
commercial and off-grid systems around the world.
Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.

---
