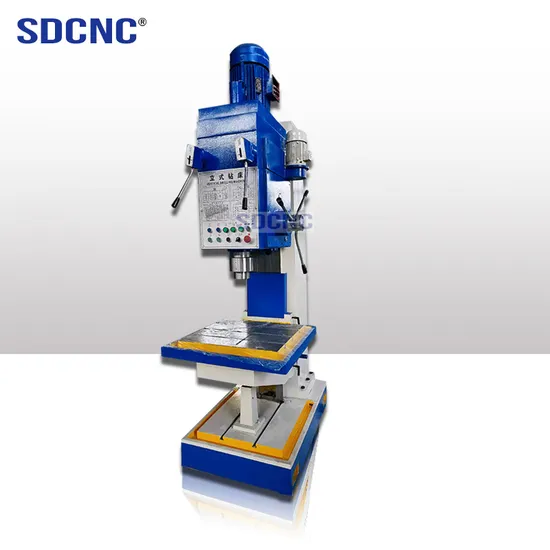

Z5140 Furadeira De Bancada Single Vertical Column Drilling Machine

Product Description

Product description:1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring,
tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient.
Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed
operation, novel appearance, convenient maintenance and so on.
Product Parameters
Product main technical specifications:

Specifications	Z5140	Z5150
Max drilling dia	40mm	50mm
Spindle taper	MT4	MT5
Spindle stroke	250mm	250mm
Headstock travel(manual)	200mm	200mm
Spindle speeds	31.5-1400r/min 12 steps	31.5-1400r/min 12 steps
Feed range	0.056-1.80mm/r 9 steps	0.056-1.80mm/r 9 steps
Table size	560x480mm	560x480mm
Table vertical travel	300mm	300mm
Max.distance spindle nose to table	750mm	750mm
Main motor power	3kw	3kw
Overall dimension	1090*905*2465mm	1090*905*2465mm
N/W	1300kg	1350kg

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool

---
