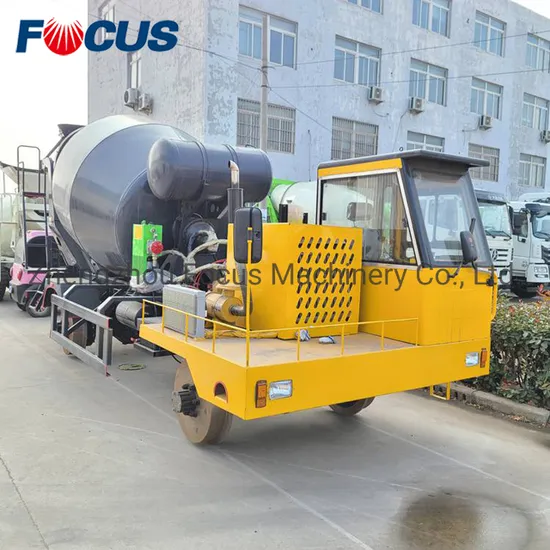

Customized Tunnel Rail Concrete Mixer Machine for Sale

US$50,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Customized tunnel rail concrete mixer machine
Transmission Type
Automatic
Emission Standard
None
Payload
20T
Fuel
Diesel
Drive Mode
None
Condition
New
Mixer Volume
8cbm
Hydraulic Driving System
Eaton, Sauer or Bonfiglioli
Concrete Truck Mixer Welding
Spot Welding
Concrete Mixer Truck Engine
96kw
Weight
25t
Blades
Wear Resistant
Water Supply
450L
Drum Process
Shot Blasting Pretreatment
Name
Double-Headed Tunnel Concrete Mixer Trucks
Transport Package
Standard Packing for International Transport
Trademark
FOCUS Concrete Mixer Truck
Origin
Zhengzhou, China
HS Code
87054000
Production Capacity
60 Sets Per Month

Product Description

Customized tunnel rail concrete mixer machine for sale
Why would our clients choose FOCUS Double-headed tunnel concrete mixer trucks?
1. international famous brand hydraulic drive fits are adopted in our cement mixer truck;
2. integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
3. multi-points control system enables the cement mixer truck operation to be easier, safer and more comfortable;
4. air pressure water supply system with large capacity water tank.
Model 8m³ 9m³ 10m³ 12m³ 14³
Length(mm) 8550 9200 9800 10150 10150
Width(mm) 2490 2490 2495 2496 2496
Height(mm) 3800 3800 3830 3900 3960
Weight(kg) 25000 25000 31000 31000 31000
Load weight(kg) 12600 13000 15650 16370 16700
Max.speed(kg/h) 75 72 90 90 50
Working
device
Drum volume(m³) 12.8 14.7 17.05 19.65 20.1
Mixing volume(m³) 8 9 10 12 14
Drum rotation(r/min) 0-14
Discharge speed(m³/min) ≥3
Slump(m) 100-230
Surplus rate(%) <1
Water tank vol.(L) 400
What are the main features of FOCUS Double-headed tunnel concrete mixer trucks?
1. Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our cement mixer truck.
2.Pump, motor and reducer in FOCUS camion betonniere are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.
3. Imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
4. Hose buckling device is totally from GERMANY HYDAC.
5. Stirring vat auto-welding improves FOCUS camion betonniere production efficiency and makes welding quality finer.
6. Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our cement mixer truck.
7. Fault indicator for the cement mixer truck can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
8. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
