Elevator Parts / Geared Traction Machine with AC Motor

US$500.00-1,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
SN-TMYJ210A
Type
Heavy
Load Capacity
4500 Persons/H
Use of Occasions
Public Traffic
Speed
0.5M/S
Slope Angle
30°
Width of Stair
600mm
Cascade Level
Two
Driving Type
AC Elevator
Railing Form
EX-P
Step Road Linetype
Spiral
Weight
610 Kg
Control
AC2
Brake
DC110V, 1.1A
Sheave
586 mm
Roping
1:1/2:1
Power
7.5/1.45kw
Transport Package
in Carton Box
Trademark
Sunny
Origin
China
Production Capacity
5000PCS/Month

Product Description

Loading 1000~2000kg / speed 0.5~1m/s / Elevator Geared Traction Machine for Passenger Elevator

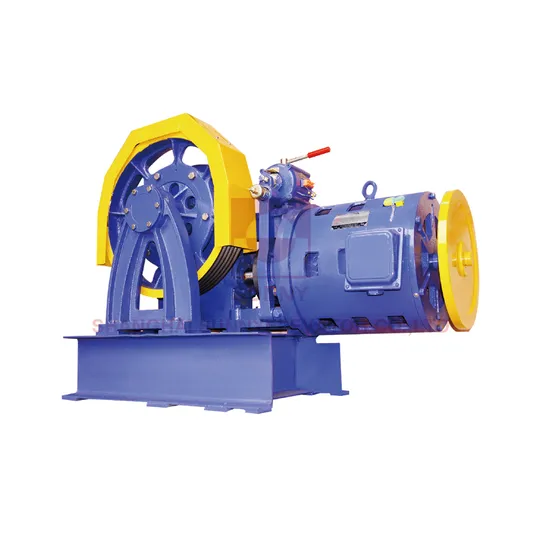

Elevator geared traction machine SN-TMYJ210A
· 1000~2000Kg,0.5~1.0m/s
· Max.Load of traction sheave shaft:8500Kg
· Control:AC2
· Brake:DC110V,1.1A
· Weight:610Kg
· Sheave position:Left
Roping Load(kg) Speed(m/s) Sheave Diam-Rope Diam x Groove No.-Groove Pitch (mm) Power(Kw) Ratio Hz Pole Speed
(r/min)
 Current(A)
1:1 1000 0.5 Ø586-Ø13x5-20 7.5/1.45 59:1 50 6/24 961 17/12
1000 1 11/2.3 59:2 50 6/24 961 24/18
2:1 1600 0.5 7.5/1.45 59:2 50 6/24 961 17/12
2000 0.25 7.5/1.45 59:1 50 6/24 961 17/12
2000 0.5 11/2.3 59:2 50 6/24 961 24/18
