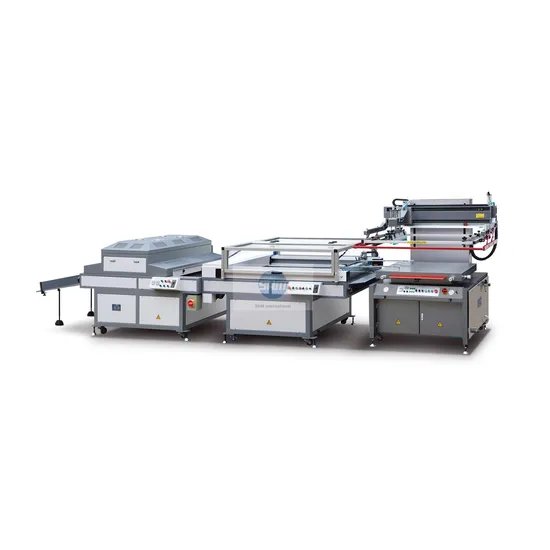

3/4 Automatic Screen Printer with Printing Part, Take-off Set & UV Dryer

Product Description

JB Series 3/4 Automatic Screen Printer with Printing Part, Take-off Set & UV Dryer Product Description 1. The machine is composed of printing part,take-off set machine and UV dryer. It is a 3/4 automatic line which the printing stock is fed by hand,taken off automatically. 2. After the printing finished and the printing arm put up, the mechanism arm of take off set machine will extend into between the arm and the plane, suck and pull out the printing stock, then send it to next working procedure (drying, solidify or collection). 3. It's not only can save labor, but also improve the working efficiency of the machine. 4. It's suitable to the flexible material, such as paper product. Product Parameters

Model	JB-750IIC	JB-960IIC	JB-1280IIC
Take-off set	JB-800CL	JB-800CL	JB-900CL
Screen printing unit	JB750 II	JB-960 II	JB-1280 II
UV part	JB-800B	JB-800B	JB-900B
Max Speed	1100pcs/h	1000pcs/h	900pcs/h
Printing size	700x500mm	900x600mm	1200x800mm
Max paper thickness	500g/m²	500g/m²	500g/m²
Power	15.24kw	16.49kw	16.89kw
Weight	1400kg	1530kg	1650kg
Dimension	6600x1050x1760mm	6800x1180x1760mm	7100x1400x1850mm

More Product Other Printing Machine

TC-54C Servo Control Screen Printing Machine	TC-106C Servo Control Screen Printing Machine	TC-78 Servo Drive Automatic Cylinder Screen Press
LC-570UI Roll to Roll Automatic Screen Printing Machine (with UV & IR Unit)	TC-145 Servo Drive Automatic Cylinder Screen Press	JB1050AG Auto Stop Cylinder Screen Press

Company Profile Packaging & Shipping
Our Service
Our service
At SHM, you can expect satisfactory customer service with long tradition. We are highly devoted to the most optimal solid and liquid separation solutions to meet your specific needs. We have the effective service system to ensure professional and flexible management of any affairs.
1.Pre-sales technical consultation
2.Model selection
3.Machine guidance
4.Operation & maintenance training
5.Maintenance service
6.Quick supply of spare parts
7.Customer satisfaction track
After-sale Service
SHM promises that all machines made by us come with services of repair and replacement. Machine warranty is 12 months. We provide free repair services to any failures caused by us within warranty time. However wearing parts are not included.
1.Any quality failure problems happens within guarantee period, we will reply within 4 hours after receiving your request.
2.SHM will provide lifelong maintenance service to all parts and regular maintenance to flatbed die cutters.
3.We will handle any quality failure occurred within warranty time.
4.We will provide lifelong technical support started from using of the machine.
5.We will supply normal parts within warranty period to ensure better user experience. Parts supply will be charged after warranty period. FAQ
Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
Q:What`s the price term and payment method?
A:We usually use Fob, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C.

---
