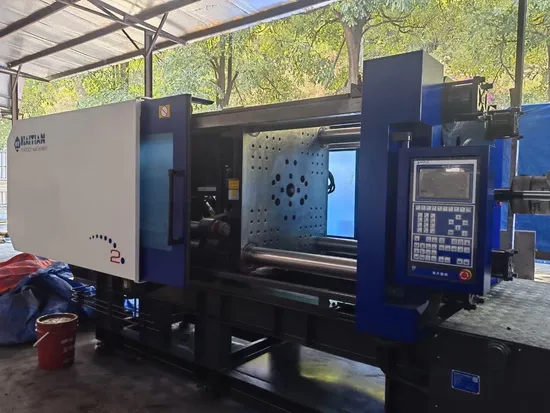

High Quality Fully Automatic Haitian Ma4700 Plastic Fruit Box 470ton Injection Molding Making Machine Price

US$32,000.00
1-4 Pieces
US$30,000.00
5+ Pieces

Basic Info.

Model NO.
MA 4700
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Product Name
Plastic Products Injection Molding Machine
Brand
Haitian
Machine Type
All-Electric Injection Machine
Model
Mars 2ND Generation Series
Function
Plastic Injection Molding Machinery
Application
Inserting Plastic Products
Keyword
Used Injection Molding Machine
Core Components
Screw, PLC
Motor
Servo Energy Saving
Advantage
Cost-Effective
Used for
Plastic Material
Voltage
380V
MOQ
1 Set
Key Selling Points
Competitive
Marketing Type
Hot Product 2018
Transport Package
Plastic
Specification
4.88m x 1.20m x 1.03m, wight 4.35ton
Trademark
Haitian
Origin
China
HS Code
8477101090
Production Capacity
50 Sets Per Month

Product Description


Company Profile

High-quality supplier of used injection molding machines, extremely cost-effective and after-sales service,We have four own warehouses in Dongguan, China to store machines, and at the same time we are traders, we can provide you with 88-1000 tons of used injection molding machines of various brands. Product Parameters
Injection Unit MA 4700
Screw diameter(mm) 80
Screw L/D ratio (L/D) 20
Shot size (theoretical) (cm^3) 1860
Injection Weight (PS) (g) 1693
Injection rate (PS) (g/s) 498
Injection pressure (MPa) 158
Plasticizing rate (PS) (g/s) 58.7
Screw speed (rpm) 0-180
Clamping Unit
Clamping force (kN) 4700
Mold opening stroke (mm) 780
Dist. between tie bars (HxV) (mm) 820×800
Mold height max(mm) 780
Mold height min(mm) 320
Ejector stroke (mm) 200
Ejector force (kN) 110
Others
Max.Pump Pressure 16
Pump motor power (kW) 55
Heater power (kW) 31.5
Machine dimension (l x w x h) 8.15 x 1.99 x 2.36
Machine weight (t) 18.5
Hopper capacity (kg) 100
Oil tank capacity (l) 830

Applications

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packaging & Shipping

Why choose us
With more than 20 years of experience in injection molding machine sales, our supply chain ensures that our products are highly competitive, providing injection molding machines and other accessories purchase services, and excellent quality assurance.
