Industrial Grade High-Temperature K-Type Thermocouple Male/Female Connector

Product Description

K Type Male And Female Thermocouple Connector Product Description


Product Parameters

Product Name	Thermocouple Connector
Connector Type	K Type Thermocouple Connector
Connector Color	Yellow
Connector Pin	Round Pin
Pair	Male And Female
Max Temperature	220C
Pin Type	Solid Or Hollow ( According To the client)
Used	K Type Thermocouple

Other type info

Mark	Material	Color
Type K	nickel-chromium----nisiloy	yellow& Green
Type E	nickel-chromium----konstantan	purple
Type T	copper----konstantan	blue
Type J	iron----konstantan	black

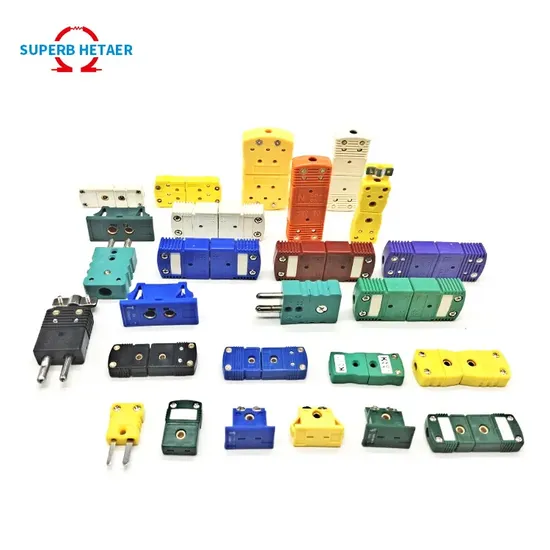

Thermocouple Connector spade Plug and Jack with Color Codes per ANSI , ASTM and IEC with the thermocouple compensating alloy used are Type K Yellow, Type J Black, Type T Blue, Type E Purple, Type N Orange, Type R/S Green, Type C Red and uncompensated Type U White thermocouple connectors.

Mailnly used in vacuum furnace with contamination.
K, J, E-type can be applied to 650 degree.

And T-type can also be accurately used in its outside emarcation scope (390 degree)

The higher temperatures ues will not cause damage to the plug itself, but accuracy will be reduced.Temperature measurement more convenientand fast. when it doesn't work the temperature logger can be removed from the lines to product the temperature line and the thermocouple ,including K, E, J, T, S.

Specification

Description	Calibration	Material of Pins		Material of Body	Max. temperature	Color
						(ANSI)
		Positive (+)	Negtive (-)
Male+Female	Type K	NiCr	NiAl	Thermoplastic	200ºC	Yellow
Male	Type K	NiCr	NiAl	Thermoplastic	200ºC	Yellow
Female	Type K	NiCr	NiAl	Thermoplastic	200ºC	Yellow
Male+Female	Type J	Fe	CuNi	Thermoplastic	200ºC	Black
Male	Type J	Fe	CuNi	Thermoplastic	200ºC	Black
Female	Type J	Fe	CuNi	Thermoplastic	200ºC	Black
Male+Female	Type T	Cu	CuNi	Thermoplastic	200ºC	Blue
Male	Type T	Cu	CuNi	Thermoplastic	200ºC	Blue
Female	Type T	Cu	CuNi	Thermoplastic	200ºC	Blue
Male+Female	Type E	NiCr	CuNi	Thermoplastic	200ºC	Violet
Male	Type E	NiCr	CuNi	Thermoplastic	200ºC	Violet
Female	Type E	NiCr	CuNi	Thermoplastic	200ºC	Violet
Male+Female	Type N	NiCrSi	NiSiMg	Thermoplastic	200ºC	Orange
Male	Type N	NiCrSi	NiSiMg	Thermoplastic	200ºC	Orange
Female	Type N	NiCrSi	NiSiMg	Thermoplastic	200ºC	Orange
Male+Female	Type S	Cu	CuNi	Thermoplastic	200ºC	Green
Male	Type S	Cu	CuNi	Thermoplastic	200ºC	Green
Female	Type S	Cu	CuNi	Thermoplastic	200ºC	Green

Testing Equipment
Certifications
Packaging & Shipping
FAQ
Q1: How can I get a sample?
A1: Please feel free to contact us by email or Made in China, we are honored to offer any samples as you request.

Q2: How about the payment terms?
A2: The 70% T/T In advance, and 30% balance against the copy of the B/L, also other payment terms are negotiable with customer's request.

Q3: What's your company MOQ?
A3: Our company has MOQ requirements, but small quantities are also acceptable.

Q4: What's the delivery time?
A4: Normally, If stock , can ship within1-7days.If without stock,the lead time is 15~25 days, but please confirm with us as different products and quantities have different delivery time.

Q5: How to solve the quality problem?
A5: After confirmed, if the quality problem is caused by us, we will compensate each item to customer.

Q6: How do you make our business long-term and good relationship?
A6: a. We keep good quality and competitive price to ensure our customers benefit.
b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
