Three Phase Smart Prepaid Keypad Energy Meter

Product Description

THREE PHASE SMART PREPAID KEYPAD ENERGY METER

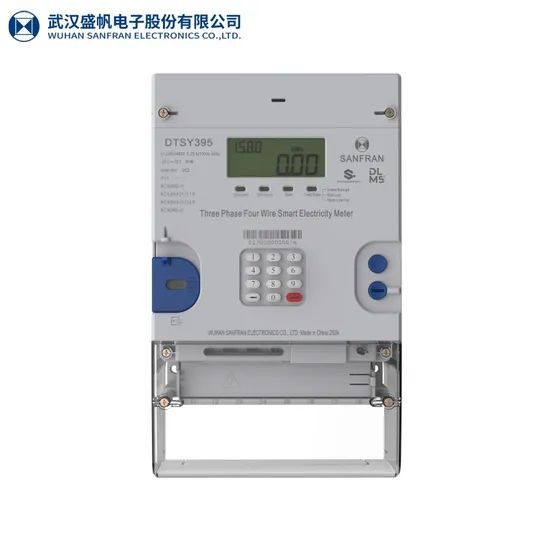

Introduction: DTSY395 three phase smart prepaid keypad energy meter is a new generation of smart energy meters, which supports interchangeable communication modules (PLC, RF, GPRS, etc.). The meter is complied with IEC standards and accredited by STS and DLMS. It can utilize PLC/RF to communicate with CIU as an option. It's an ideal choice for commercial, industrial and residential customers.
Main Features: ★ Full DLMS/COSEM and IEC 62056-21 compliance ★ 20-digit STS encryption ★ Up to 12 months billing data registers ★ Prepaid/postpaid mode switchable ★ Time of Use (TOU) measurement of energy and maximum demand ★ Up to 32 energy tariff and 32 demand tariff registers ★ Support emergency & Friendly holiday mode ★ Anti-tamper ★ 6 independent communication interfaces (RS485/RJ45/MC171...) Standard:
★ Compliance with IEC standards (IEC 62052-11, IEC 62053-21, IEC 62053-23 and IEC 62055-31) ★ Compliance with Interoperability standards such as G3-PLC, BPLC, DLMS, STS2 ★ Applicable to DLMS/COSEM security suites 0
Technical Specification:

Nominal Voltage	3×230/400V
Voltage Range	0.6Un~1.3Un
Current	5(100)A
Frequency	50Hz±5%
Accuracy Class	Active Energy: CL 1.0 1000 imp/kWh Reactive Energy: CL 2.0 1000 imp/kvarh
Standard	IEC 62052-11, IEC 62053-21 , IEC 62053-23 and IEC 62055-31 standards (mechanical, climatic, electrical, electromechanical and metrological)
Real-time Clock Accuracy	<3min/Year or <0.5s/Day
Environment	Temperature Range: -10°C ~+ 80 °C Humidity: Up to 95%
Ingress Protection	IP54
Communication Interface	Optical port (IEC 62056-21) G3-PLC/BPLC/Plug&Play module MC171 interface

Meter Dimension:

---
