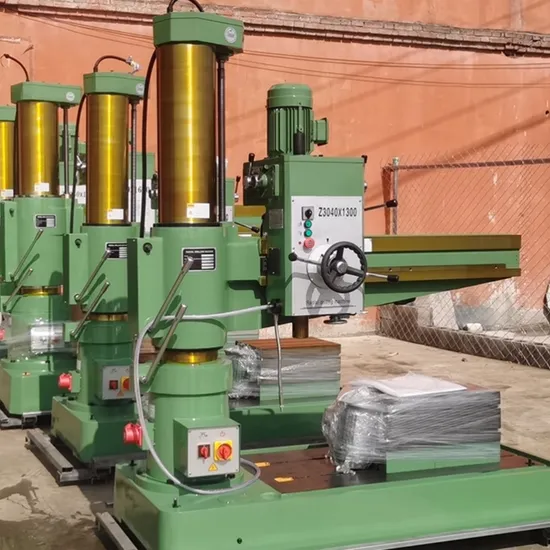

China Manufacturers Z3063 CNC Drilling and Milling Machine Radial Drilling Machine

Product Description

Overview
Product Description
1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual, power and fine feeds. 3. The feed of machines are very easily engaged and disengaged at any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the headstock easy operation and change.
6. Clamping for all assemblies and speed change of spindleachieved by hydraulic, sensitive and reliable.
7. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
11. Importable electrical components with CE,UL standard.
Product Accessories
Product Parameters

Specification	Z3032*10	Z3040*10	Z3040*13	Z3045*13	Z3050*16	Z3063*16/20
Maximum drilling diameter(mm)	32	35/40(Steel parts/castings)		40/45(Steel parts/castings)	48/50(Steel parts/castings)	50/63(Steel parts/castings)
Spindle taper	MT4				MT5
Spindle speed stages	6	12			6	12
Spindle speed range	108-1000	34-1220		22-1400	78.135.240.350.590.1100	34.47.66.90.130.180.240.340.470.650.930.1280
Spindle lifting speed(r/min)	1.21	1.3
Rocker arm rotation angle	360°	360°±180°			360°
Maximum allowable torque of the spindle(Nm)	200	580	850		1250	1250/1650
Spindle feed(Level 3 )			0.10 0.16 0.25		Level 6,0.10/0.16/0.22/0.25/0.35/0.56
Maximum feed allowed for the spindle(N)	5300	6300			16000
Main motor power(kw)	1.5/2.2			3	4	4/5.5
Rocker arm lifting motor(kw)	0.55	1.1			1.5
Machine weight(kg)	950	800	1500	1600	2000	2200/2600
Dimension(mm)		1450*690*2200	1850*800*2350		2170*950*2450	2170*950*2450 2570*1000*2550

Certifications
Packaging & Shipping
Hot Sale Products
Our main products include CNC lathe,CNC machine,ordinary lathe and any other matal processing machine.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
