Effective Wet Mixed Concrete Shotcrete Pump with 8m3/Hr Spraying Capability

Product Description

effective wet mixed concrete shotcrete pump with 8m3/hr spraying capability
22KW power 8m3/hr output capability wet concrete spraying machine
At present, shotcrete machine is divided into two kinds: dry concrete spraying machine and wet concrete shotcrete spraying machine.
Both of them are commonly used for pouring such thin-walled structures as tunnel lining, walls and ceilings, as well as the covering layer of steel structure.
Dry spraying machine mixes cement, sand and gravel in a dry and evenly state, a method to compress the air to deliver materials to the nozzle where they are mixed with pressure water for pouring; it must be operated by skilled personnel, and the particle size shall not be too large, however, as large amounts of cement are required and the jet velocity is large, which lead to severe dust pollution and rebound, its usage is thereby restricted.
Wet spraying machine delivers well mixed concrete to the nozzle through conveying and pumping, and compressed air is added at the outlet of delivery pump, which makes materials and air fully integrate with one another in the pipe, so that perfused materials become more even. In addition, accelerator is sprinkled on the nozzle for making materials solidify rapidly and reducing the rebound rate. Besides, its working efficiency is higher than dry spraying machine as the mixture of materials can be easily controlled.
Wet spraying machine is widely used for concrete spraying operation in places such as mine, tunnel, culvert, railway, hydro-power project, underground engineering and revetment.
Main Characteristics of Hydraulic Pump-type Wet Spraying Machine
The system is more reliable and delivery capacity is stable in adopting hydraulic pumping.
It has large volume of delivery, long distance of delivery and high efficiency of construction.
Sprayed concrete is of high performance and strength, as well as being dense and homogeneous.
,PLC.
The main oil pump adopts variable displacement piston pump of constant power; and the delivery amount, which can be freely adjusted according to needs, is controlled by PLC.
S pipe surfacing electrode of high strength, wear plate and cutting ring are inlaid with hard alloy of high strength, which not only improves the wear resistance, but increases the service life of parts.
It is equipped with multi-point electric lubricating pump. And together with automatic and effective control of grease's filling amount and time, contributing to the fact that the service life of wear-out parts are effectively increased
Air cooling avoids damage caused by water cooling in winter.
Accelerator is added and controlled by metering pump of domestically famous brand, achieving accurate measurement and realizing stepless speed regulation.
Harm on the health of operator is reduced by lowering dust concentration beside the machine and of the nozzle.
Humanized design of product makes operation and maintenance become easier, with reliability effectively guaranteed as well.
Configuration of Hydraulic Pumping Wet Spraying Machine:.
Power System: it adopts motor and diesel engine of domestically famous brand.
Main Oil Pump: it adopts variable plunger pump, which guarantees the stable and reliable operation of system, while its overpressure relief function realizes the effective protection of main pump and motor.
Lubrication System: it adopts separate lubrication of five points, and "point-to-point" lubrication guarantees that critical parts won't be worn out, thus increasing their service life.
Accelerator Metering Pump: reciprocating piston diaphragm pump is of high temperature resistance, erosion resistance and abrasion resistance, with high accuracy of measurement, and its speed can be regulated steplessly.
Characters of electronically controlled reversing system: low pumping pressure and high reversing speed, which reduce reversal impact and operator's labor intensity; two separate hydraulic circuits make the oil supply of system more stable; operation becomes simple and reliable through accurate control of PLC, which increases reversal speed of swing cylinder while reducing the reversal impact, at the same time, instantaneous action of large cylinder's reverse is accelerated, making concrete cylinder become substantial, increasing the continuity of materials supply and realizing even discharge.

	Item	Unit	Parameter
Concrete pump	Max. theoretic concrete spray volume	m³/h	8
	Max. theoretic delivery pressure	Mpa	7
	Max. delivery frequency	Times /min	16
	Type of distribution valve		S tube valve
	Main oil cylinder specification: cylinder dia./role dia.× stroke	mm	Φ140×1200
	Diameter of delivery cylinder	mm	Φ100
	Hopper Height	mm	1140mm
Power system	Engine Model		1004-4 LOVOL
	Power	kw	56
	Rated Voltage	V	24VDC(2*12V,110Ah)
	Rated Speed	r/min	2200
	Fuel Tank	L	70
Hydraulic system	Type of Hydraulic oil circuit		Open circuit
	Maximum oil pressure of main system	Mpa	25
	Hydraulic oil tank volume	L	200
Other parameters	Max. stone diameter	mm	≤15 When spray
	Pipeline inside diameter	mm	Φ57
	Boundary dimension	mm	4500*1500*1550
	Weight	kg	2300
	Towing peed	km/h	≤8

Technology:
use S-valve to switch the direction, for fine stone concrete conveying
good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
high delivery pressure for demand of high-rise and long distance projects
double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
air cooling system, without dependence of external water supply
with re-pumping function to smooth construction of better accessibility
automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
equipped with wired remote controller, easy to operate

Areas of application:
The SAINTYOL DAWIN Machinery wet concrete shotcrete pump are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying

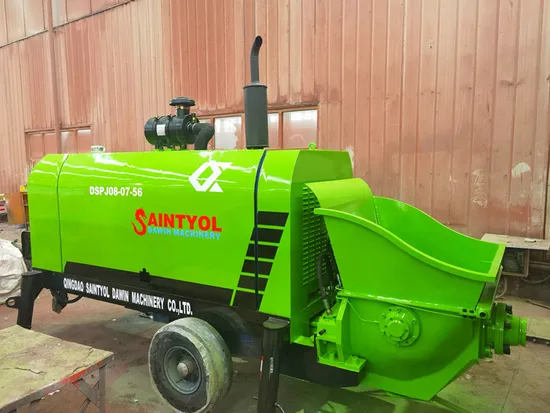

DSPJ08-07-56 wet concrete shotcrete pumpare applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.

SAINTYOL DAWIN Machinery is a company specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. A factory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
SAINTYOL DAWIN Machinery Answers:
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine

1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity:,8m3/h, 15m3/h 20m3/hr 30m3/hr
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine

2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.

3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.

4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.

5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.

6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.

8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.

9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
After-sale Service
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting
equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received
the telephone.
6. For exported products, Our company sends the constructor to help to operate and
management equipment, time according to your needs. The related fee will be undertaken
by buyers.
7. Promptly provides the fittings according to users' demands, handles for the user consigns
for shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be
free of charge for half a year.
9. Provides the technology advisory service as necessary.
10. Please contact me via telephone when you have any problems with the plant.
Dear friends:
Welcome to our website and hope our trailer wet concrete shotcrete pump will make you satisfied.We think creatively,design bravely,manufacture precisely and loyalty to our customers. And we have our own factory.so We can produce the products,according to customer requirements .

Enjoy SAINTYOL DAWIN Machinery Enjoy Better Life!
Yours sincerely
Saintyol Dawin Machinery

---
