| US$2,500.00-5,000.00 | 1 Set (MOQ) |

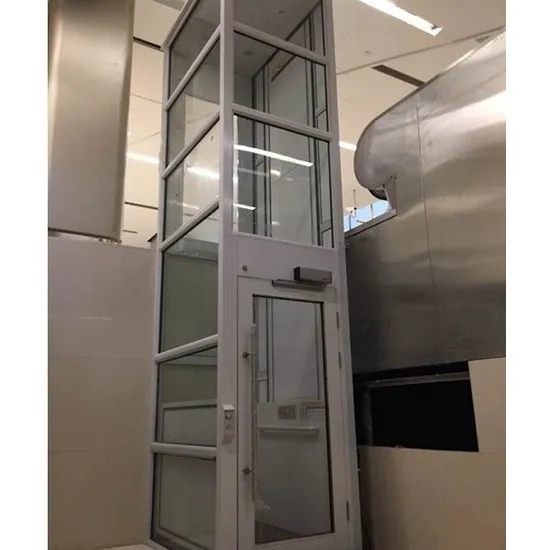

| Y-160 Hoistway Vertical Platform Lifts | ||
| Voltage: | 220V/50HZ or Customized | |
| Overall Dimensions: | 1590mm×1380mm×(Lifting Height+2200mm)or Customized | |
| Equipment Dimensions: | 1370mm×1270mm×(Lifting Height+2200mm)or Customized | |
| Installation Dimensions: | 1590 mm(L)×1380 mm(W) | |
| Lifting Base Plate Size: | 1370mm×920mm | |
| Max. Lifting Height: | Customized | |
| The Minimum Height of the Lifting Base Plate: | 80mm(from the ground) | |
| Installation Way: | No foundation pit installation, directly fixed on the horizontal concrete floor and wall. Height difference ramp transition. | |
| Lifting Speed: | 90mm/s Inverter control, soft start soft brake | |
| Max. Loading: | 240kg | |
| Guard Form: | 90°/180° | |
| Specifications: | 80mm×80mm Aluminum alloy square tube 6mm tempered glass | |
| Drive Way: | Hydraulic double-valve silent motor-driven | |
| Control Supply Voltage: | 24V/DC | |
| Motor Power: | 2.2kw 220V/AC | |
| Lift Control: | elevator panel buttons | |
| Outbound Call Form: | The upper and lower outbound call columns are installed on the door column and the equipment linkage control platform runs up and down | |
| The way of opening the door: | Automatic | |
| Platform Handrail: | Matte space aluminum | |
| Applicable environment: | Indoor or Outdoor | |
| proper temperature: | -20°C-60°C | |
| Equipment appearance: | Electrostatic spraying of steel plate | |
| Color: | spray white | |
Safty Euipment | Overload protection: | Does not operate when overloaded and sends out an alarm indication signal |
| emergency stop: | Press the emergency button to stop the equipment. | |
| emergency descent: | Electric emergency descent. | |
| safety door: | Safety doors and sensor light curtains are installed at the upper and lower entrances and exits | |
