Product Details
Product Description
Product Description
Product Introduction

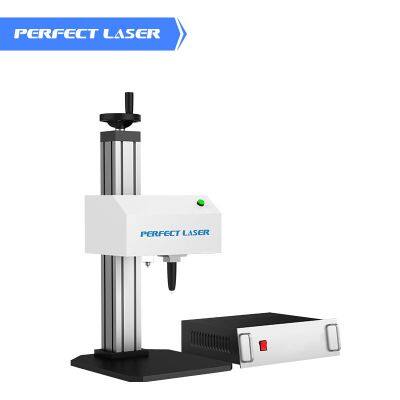

Perfect Laser is a famous dot peen marking machine manufacturer. Our PEQD-100 dot peen marking machine is suitable for flat marking on metals and some hard plastics . The dot peen marking machine is an industrial marking machine which can make permanently logo，letters，numbers，graph and date on workpiece with direct part marking.
Product Features
1. The dot peen marking machine enables flat surface marking of the metal and hard plastic work piece.
2. The direct part mark use of the currently used lifting structure to achieve the multi-function machine.
3. The dot peen marking machine editing function is very powerful, not only can automatically mark logos, characters and letters but also identify VIN codes, graphics and engine numbers.
4. Can support DXF format design logos and graphics.
5. Dot marking machine can support multiple fonts such as MG fonts, SHX fonts and TTF.
6. Automatically save the contents of the mark to prevent damage caused by power failure of the machine.
7. Dot peen marking machine rotary fixture is an optional item available for you.
Application
Direct part mark Can be used for connecting rods, engines, various mechanical parts, machine tools, hardware products, various metal signs, metal pipe fittings, gears, pumps, valves, solid parts and a variety of hard plastic products surface numbering, name, trademark logo etc.
Technical Data
Description
| Dot Peen Marking Machine
|
Model
| PEQD-100
| PEQD-025
| PEQD-030
|
Machine Type
| Flat Marking
| Flat + Rotary
Marking
| Portable Type
|
Rotary Function
| No
| Yes
| No
|
Working Area
| 150×100mm/300×200mm/
400×300mm/200×100mm
| 135×20mm/125×20
mm/90×20mm/150×
100mm/200×100mm
|
Chuck Diameter
(Standard)
|
| 125mm
|
|
Chuck Diameter
(Optional)
|
| 160mm/200mm
/300mm
|
|
Marking Accuracy
| 0.01 mm
|
Marking Depth
| 0.01~2mm
|
Marking Speed
| ≤50mm/s
(for 3mm letter height/ 3-4 numbers/second)
|
Lifting Range
| 0-300 mm
|
Machine Power
| ≤400 W
|
Pin Hardness
| HRA 92
|
Power Supply
| 220V±10％, 50HZ
|
Air Pressure
| 0.2-0.6 Mpa
|
Working Environment
| -5～40 ℃
|
Whole Machine
Weight
| 60 Kg
| 70 kg
| 25 kg
|
>>
