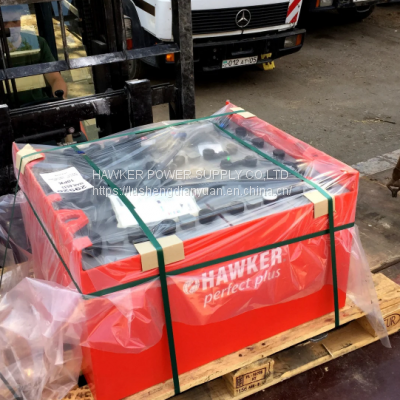

HAWKER Lead-Acid Traction Battery 6PZS750/48V750Ah
The traction forklift battery produced by hawker | hawker power supply Co., Ltd. is the most advanced technology and process, and is also widely used in the industry. For example, many famous brand manufacturers such as forklift, locomotive tractor, electric cleaning vehicle and electric tour vehicle use hawkerpzs traction battery. It complies with DIN standards and mainly supports European standard forklifts such as Linde, Hangcha, JUNGHEINRICH, Hyster, BT and still. It complies with JIS / BS standards and mainly supports JIS / BS standard forklifts such as nichiyu, Toyota, TCM, Komatsu, shinko and Nissan.
Monomer structure
Hawker traction battery uses mature tubular positive plate technology. The positive electrode plate adopts die-casting grid, and the active material is stored in the row pipe made of polyester material; The negative electrode plate is a reinforced plate electrode plate. Between the positive and negative plates are microporous membranes with protrusions on one side. The battery cell shell is made of polypropylene material with high impact resistance and high temperature resistance, and the shell cover is heat sealed to prevent electrolyte leakage.
Pole terminal
Each positive and negative terminal is made of lead alloy and copper core terminal with internal thread. The cooperation between the pole and the compressed sealing rubber ring can effectively prevent the leakage of electrolyte.
Battery cell connecting strip
The battery cells are connected by fully insulated halogen-free flexible connecting strips. The method of fixing the connecting strip with bolts can make it easy and fast to take out the unit in the battery pack for maintenance or replacement.
Safety valve
Each battery cell is equipped with a safety valve to allow the gas generated during charging to escape. The safety valve can be used to add purified water and measure the specific gravity of electrolyte. The safety valve also has a baffle for the battery to prevent the surge of electrolyte.
Battery cover
The battery cover is designed with an electrolyte agitation system or a temperature sensor that can be installed after punching.
Hawker aquamatic centralized automatic water adding system
Hawker aquamatic centralized automatic water adding system can add water to all battery cells in the battery pack from the central point of the battery system. As shown in the previous figure, the water filling safety valve of the system can automatically maintain the optimal liquid level of the battery cell, and also allow the gas generated during the charging process to escape and measure the specific gravity of the electrolyte.
Electrolyte agitation system
Hawker electrolyte circulation agitation system is based on the principle of air lifting and works with the pipeline system installed on the battery. The diaphragm pump blows the low-speed air flow into the battery so that the air flow circulates in the battery case. The system can effectively prevent electrolyte delamination and ensure charging optimization.
advantage
● higher capacity under the same overall dimension
● higher discharge efficiency
● longer operation time and higher reliability
● it effectively integrates din and BS standards in European standards in terms of capacity and size
Hawker traction battery for charged hydrolytic agitation system
● avoid delamination of electrolyte and temperature during partial or full charging
● optimize the charging acceptance process of the positive and negative plates of the battery, so that the bearing capacity of the positive and negative plates is consistent
● compared with the traditional charging method, the charging time is reduced by 30% and the energy consumption is reduced by 20%
● avoid delamination of electrolyte and temperature during partial or full charging
● optimize the charging acceptance process of the positive and negative plates of the battery, so that the bearing capacity of the positive and negative plates is consistent
● compared with the traditional charging method, the charging time is reduced by 30% and the energy consumption is reduced by 20%
Electrolyte stratification and electrolyte circulation
Hawker ® The dimensions of traction battery pzs type (with bolt and solid connecting strip) meet the requirements of DIN / en 60254-2 and iec254-2 'l' series standards.
Battery model: | Nominal / rated capacity
(5 hours)
| Maximum cell size (mm)
| Weight of charged hydrolysate
（+/-5% kg)
|
L
| W
| H
|
|
|
|
|
|
|
2 PzS 250
| 250
| 47
| 198
| 600
| 14.3
|
3 PzS 375
| 375
| 65
| 198
| 600
| 20.5
|
4 PzS 500
| 500
| 83
| 198
| 600
| 26.9
|
5 PzS 625
| 625
| 101
| 198
| 600
| 32.9
|
6 PzS 750
| 750
| 119
| 198
| 600
| 39.4
|
7 PzS 875
| 875
| 137
| 198
| 600
| 45.8
|
8 PzS 1000
| 1000
| 155
| 198
| 600
| 51.5
|
9 PzS 1125
| 1125
| 174
| 198
| 600
| 57.7
|
10 PzS 1250
| 1250
| 192
| 198
| 600
| 64.0
|
|
|
|
|
|
|
2 PzS 280
| 280
| 47
| 198
| 715
| 19.1
|
3 PzS 420
| 420
| 65
| 198
| 715
| 25.4
|
4 PzS 560
| 560
| 83
| 198
| 715
| 32.9
|
5 PzS 700
| 700
| 101
| 198
| 715
| 39.9
|
6 PzS 840
| 840
| 119
| 198
| 715
| 47.2
|
7 PzS 980
| 980
| 137
| 198
| 715
| 54.8
|
8 PzS 1120
| 1120
| 155
| 198
| 715
| 62.3
|
9 PzS 1260
| 1260
| 174
| 198
| 715
| 71.0
|
10 PzS 1400
| 1400
| 192
| 198
| 715
| 76.7
|
>>
