Two Colour Rotary Tablet Press Machinery

Product Description

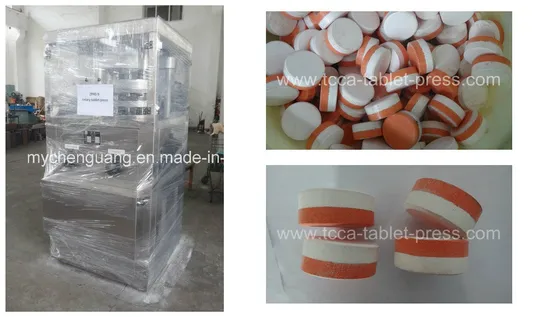

Bilayer diswasher rotary tablet press
our ZP60 seies rotary tablet press can press double layer/two colour tablets, such as detergent tablets, two layer tcca tablets.
Youtube link: https://mychenguang.en.made-in-china.com
Youtube link:https://mychenguang.en.made-in-china.com
Introduction
ZP60-23 Rotary Tablet Press is used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy.
ZP60-23 rotary tablet press can press double layer tablets, e.g double layer dishwasher tablets.
Characters
1. The machine pressure is very high, suitable for tablets in big size and double layer tablets(double layer dishwasher tablets).
2. Machine is fully closed. The rotary turntable is made of one piece, very stable, also the turret surface is wear resistant.
3. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
4. Machine design is reasonable. Operation, dismantling and maintenance is convenient.
5. Machine speed is adjustable, production capacity in big size is large, suitable for scale production.
5. The machine can stop automatic in case of over pressure.
6. All the drive devices are located inside the machine so keep the machine clean.

Following is ZP60-23 rotary tablet press specification, as for reference.

Model	ZP60-23
Dies	23sets
Max Pressure	600Kn
Max Dia of Tablet	60mm
Max Depth of Fill	52mm
Max Thickness of Tablet	25mm
Turret Speed	1-10r/min
Production Capacity	13500pcs/h
Motor	7.5kw

Our Advantages Characters:
* 9 pcs of Tablets output in each circle, max 5400pcs/h.
* has pre-press wheel 200Kn, and 1000Kn main pressure, which guarantee the quality of finished tablets.
* Moulds are made of Titanium Alloy material.
*Own a big powerful gear box under machine bottom frame.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in machine inner, avoid it of corrosion.
* With a frequency protection device, if pressure is too large, the tablet press machine can be automatically shut down to protect the body from damage. Packaging & Shipping

---
