Product Details
Product Description
Product Description
♦ The full automatic box nail machine adoptsJapanese yaskawa, mitsubishi brand servo drive, precise and accurate,the mechanical transmission part is less, can effectively reduce the mechanica failure rate;
♦ the contactor in the control box adopts mitsubishi brand of Japan;
♦ the relay adopts the brand of schneider in France, the circuit breaker adopts the brand of mitsubishi in Japan, and the photoelectric and proximity switches adopt the brand of omron in Japan. Cylinder, solenoid valve for Taiwan vadec brand;
♦ the whole set of nail head are all made of special steel, CNC precision machining;

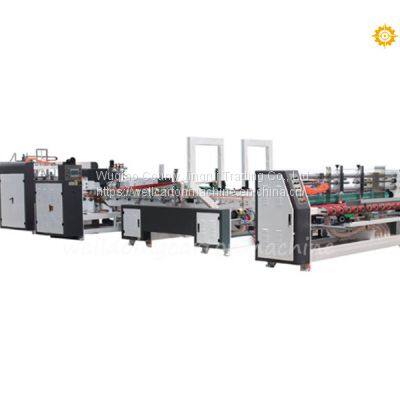

automatic nail box machine
♦ bottomdie,the blade is made of Japanese tungsten steel (wear-resisting);
♦ can be tacked with cover box;
♦ the driving force of the nail head is yaskawa servo motor. mechanical speed: 700-800 nails per minute;
♦ four nail, 60 pieces per minute or so;
♦ this Automatic box nailing machinery adopts nine servo drive motor system;
♦ one machine, can nail single nail carton, double nail carton;
♦ nailable reinforcing nailing, single nailing, double row nailing one time;
Model
| SBDJ-2500
|
Max. paper size (mm)
| 1250 (one-piece)
|
Min. paper size (mm)
| 650
|
Max. carton length (mm)
| 900
|
Min. carton length (mm)
| 360
|
Max. carton width (mm)
| 550
|
Min. carton width (mm)
| 200
|
Max. paper height (mm)
| 1000
|
Min. paper height (mm)
| 200
|
Max. rock cover (mm)
| 500
|
Min. rock cover (mm)
| 20
|
Max. high (mm)
| 700
|
Min. high (mm)
| 110
|
Max. width of the tongue (mm)
| 30-35
|
Nailing from (mm)
| 30-120(high speed)
|
Number of nails
| 2-99
|
Stitching Speed (nail/minute)
| 700-800
|
Weight (T)
| 12
|
♦ the stacking part automatically counts the output, the finished products are sent out for easy strapping;
♦ this machine adopts computer screen to display fault description;
♦ insulation transformer protection device for the whole machine;
♦ automatic wire feeding system, no wire alarm, 20 KG plate flat wire, save time;
♦ suitable for small and medium-sized cartons, fast and labor saving stitching;
♦ applicable to corrugated board three layers, five layers, seven layers (seven layers need special instructions).
