| Model | BK-360-G-13M |
| Laser type | Fiber laser |
| Working mode of laser | Continuous/pulse |
| Cooling mode | water-cooling |
| Standard output power | 12000W |
| Maximum cutting speed | 80m/min |
| Travel Y-axis | 12000mm |
| Travel Z-axis | 350mm |
| Cuttable material | Stainless steel, carbon steel, aluminum, copper, manganese, nickel and other arbitrary metal materials |
| No. | Item | Model | Brand |

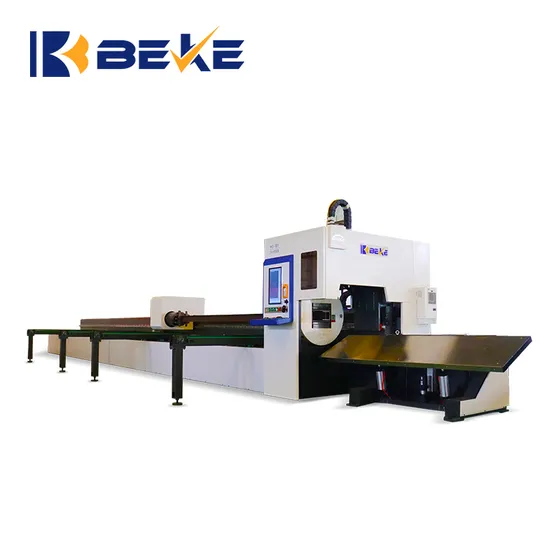

| 1 | Laser tube cutting machine | BK-360-G-13M | BEKE technology |
| 2 | Cutting head | BS12K | China |
| 3 | Laser | MAX | Shenzhen, China |
| 4 | Servo drive and motor | Bochu | Taiwan/Shenzhen |
| 5 | Special CNC cutting system | BEKE customized | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Japan |
| 8 | Proximity switch, etc | Schneder | France |
| 9 | Reducer | MOTOVARIO | France |
| 10 | High precision linear guide rail | HeRen/HIWIN | German/Taiwan |
| One of the control software of fiber laser cutting machine -- Bochu system. Cypress cypcut laser cutting control software is specially used for the control and operationof laser cutting machine, which is very convenient and practical. lt can achieve thebest cutting effect with the laser cutting machine. Fiber laser adopts air-cooled compact structure design, semiconductor fiber as laser generation medium, green environmental protection, simple mechanical structure, constant optical path, basically maintenance free, stable cutting performance. | |||
