AC Contactors 3 Pole 6.6 Kv Low Voltage Vacuum Contactor

Product Description

Product Information:

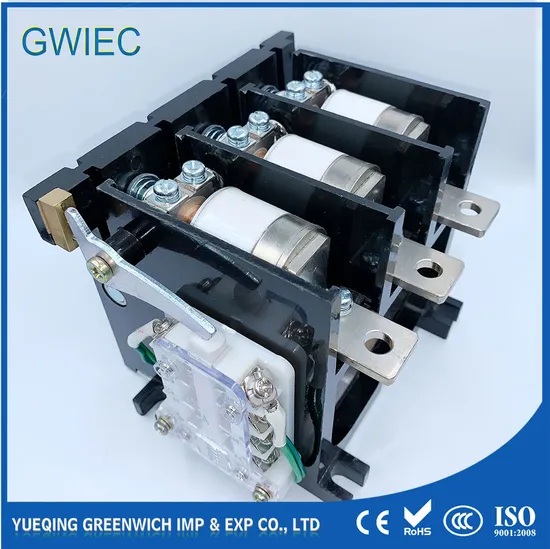

CKJ5 Vacuum Contactor 220V 380V 440V 690V 1140V 80A 125A 160A 250A 400A 500A 630A 3 pole Vacuum Contactor

Application
CKJ5 series AC Vacuum Contactor is designed for long-distance making and breaking in circuit, frequency starting and controlling AC motor in the power system with AC 50 Hz-60Hz, rated operating voltage to 1140V. It also can be formed with thermal relay and all kinds of protection apparatus, as electromagnetic starter, especially applies to explosion electromagnetic starter and all sorts of power control equipment. It may apply to the department of mine, metallurgy, petroleum, chemical industry, power, communication transportation and so on.
The contactor conforms to IEC 60947-4-1,GB/T 14048.4 and JB/TN 7122 standard,the main performance indicators have reached the international level."Y"means this product has coil operation mechanism type and permanent magnet operation mechanism type.Coil operation mechanism type is normally used.Customers can choose the suitable type according to the application.

Normal working and installation conditions
Ambient temperature: -25ºC~+40ºC
Altitude: ≤2000
Humidity: Relative humidity on daily average less than 95%, on monthly average less than 90%.
Water vapor pressure on daily average less than 2.2kPa, on monthly average less than 1.8kPa.
No normally violent vibration.

Main technical parameter

Model			CKJ5-160/1140	CKJ5-250/1140	CKJ5-400/1140	CKJ5-630/1140
Main Circuit	Rated working current (Ie)		80A, 125A, 160A	200A, 225A, 250A	400A	500A, 630A
	Rated working voltage (Ue)		1140V
	Rated frequency (fr)		50/60Hz
	Rated making capacity (100 times)		10Ie
	Rated breaking capacity (25 times)		8Ie
	Limit breaking capacity (3 times)		2000A	4500A	4500A	6000A
	Withstand Voltage (power frequency)		4200V
Control circuit	Rated voltage (Us)		AC. 220/380V, DC. 110/220V, or other Customerized control voltage
	Withstand Voltage (power frequency)		2000V
	Rated power (Ps) electric holding	absorbing	≤600VA
		holding	≤50VA
Auxiliary circuit	Form		2a+1b	4a+3b
	Withstand Voltage (power frequency)		2500V
	Rated value		AC 380V/5A, DC 380V/1A
Main Contact Parameter	fixed - moving contact distance		1.8±0.2mm	2.0±0.2mm
	Overtravel		1.0±0.2mm
	Final pressure		30±3N	78±7.8N	117.6±11.8N	196±19.6N
Rated operating frequency	Long-term (AC-3)		600 times/h
	Long-term (AC-4)		300 times/h
	Short-term		3000 times/h		2000 times/h
Mechanical endurance			3,000,000 times
Electrical endurance	AC-3		600,000 times
	AC-4		60,000 times		20,000 times	5,000 times
Mechanical characteristics	Closing time		≤200ms
	Original opening time		≤160ms
	3-phase synchronism		≤3ms
	Closing tripping		≤10ms

Overall and installation dimension
