Advanced Plastic Bottle Making Machine with 3-Year Warranty Components

Product Description

Products Description

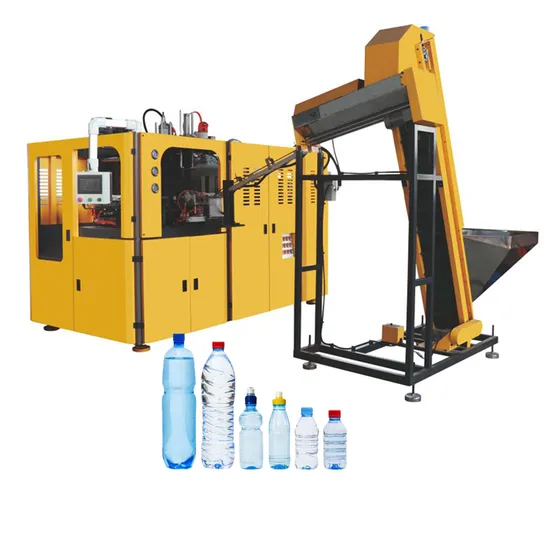

Automatic Bottle Blow Making Machine Introducing our state-of-the-art, fully automatic high-speed blow molding machine, expertly engineered for the efficient transformation of preforms into bottles ranging from 20ml to 2 liters. Its intricate design and masterfully crafted machinery ensure a smooth and consistent blowing process. Featuring uniform heating and a multi-layered preform heating system, this machine embodies precision with its automatic fault detection and alarm system, guaranteeing optimal control and unwavering production stability.

Feature * Our Blowing Machine boasts a refined design that facilitates the creation of bottles in various sizes, ensuring vibration-free operation for superior consistency.
* The hydraulic mold system enhances the machine's robustness and intricate design, delivering impeccable clamping and steadfast operation for flawless results.
* Equipped with a precise air control system, the machine ensures even airflow throughout the entire process, supporting uniformity and quality.
* For precise and convenient shaping, the cooling device specifically targets the bottleneck, efficiently cooling the area post-molding for optimal results.
* Advanced servo motors facilitate effortless stretching of preforms, enabling swift and precise stretching strokes for enhanced efficiency.
Customization Service
Our customization service offers a meticulously tailored process plan and comprehensive mold designs, ensuring impeccable compatibility between the bottle cap (injection mold) and bottle body (blow mold). Employing high-precision machining centers, we craft molds with superior precision, delivering exceptional cooling effects. Our service includes free proofing, exquisite production techniques, and stringent quality standards.
Detailed Photos


Product Paramenters

Model		Unit	MW-F2-650	MW-F2-2000	MW-F3-2000	MW-F4-650	MW-F4-2000	MW-F6-650	MW-F6-2000
Clamping System	Number of cabity	cavities	2	2	3	4	4	6	6
	Clamping unit	KG	35000	45000	46500	40000	48000	56000	65000
	Mold stroke	mm	90	110	118	90	125	90	125
	Stretching stroke	mm	300	400	280	260	330	260	330
	Bottom stroke	mm	50	50	50	50	50	50	50
	Cavity pitch	mm	76.2	114.3	120	76.2	114.3	76.2	114.3
	Number of holder	PCS	66	52	70	95	82	106	106
Container	Max.container volume	ml	650	2000	2000	650	2000	650	2000
	Max.container height	mm	260	330	330	260	330	260	330
	Max.container diameter	mm	68	105	105	68	105	68	105
	Max.prefrom height	mm	100	140	140	100	140	100	140
	Max.neck diameter	mm	38	38	38	38	38	38	38
Theoretical		B/H	2500	2000	3000	4500	4000	7200	6000
Electrical System	Heating oven qty	PCS	2×2	4×4	4×5	4×4	5×5	4×4	8×8
	Number of lamp	PCS	2×8	4×8	4×8	4×7	5×9	4×8	8×9
	Heating power	KW	32	48	60	42	72	64	96
	Installed power	KW	36	50	65	45	80	69.5	100
	Voltage	Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0
	High pressure air consumption	L/min	2.4/30	2.4/30	2.4/30	3.6/30	4.0/30	5.0/30	5.0/30
	Power	KW	30	30	39	45	48	60	60
Chiller System	Temperature		9-13	9-13	9-13	9-13	9-13	9-13	9-13
	Pressure	mpa	0.4	0.4	0.4	0.4	0.4	0.4	0.4
	Power	HP	3	3	3	5	5	5	5
Machine	Machine dimension	M	2.7×1.8×2.2	3.3×1.8×2.0	3.5×1.8×2.0	3.9×1.8×2.2	4.8×2.2×2.2	4.0×2.1×2.2	5.8×2.1×2.2
	Machine weight	KG	2000	2500	2700	3500	4500	6000	7000

Packing and Shipping

Packaging:
Our robust wooden packaging shields the machine from impacts and damage, while a protective plastic film guards against moisture and corrosion. With a fumigation-free package, we facilitate seamless customs clearance. Large machines are secured in containers to ensure safe transit without separate packaging.
Shipping:
For LCL shipments, we collaborate with a trusted logistics team to ensure rapid and safe delivery to the port. For FCL, we handle container procurement and loading with precision. Our long-standing partnerships with forwarders guarantee smooth shipment processing. We strive for seamless collaboration with forwarders for your utmost convenience.


Company Profile
Taizhou Maiwei Plastics Machinery Co., Ltd. is a pioneer in blow molding technology research, consistently refining our equipment for enhanced stability, reduced energy consumption, and increased durability. Our diverse product range includes containers for dairy products, wine, oil, laundry detergents, engine oil, as well as sprayers, hollow toys, and other plastic products. We are dedicated to solving your packaging blow molding challenges, not merely supplying equipment. Our machines are highly adaptable, with customizable air source systems to meet user needs, ensuring flexibility, energy efficiency, and high performance.


Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
