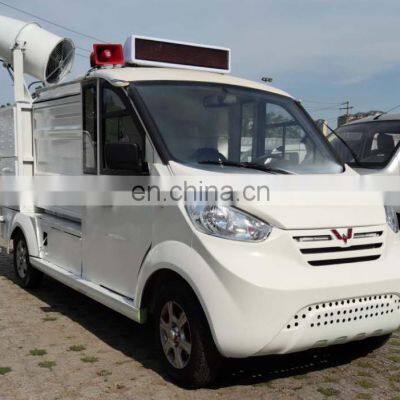

Based on the non highway M100 model in Wuling, the vehicle is refitted into a road spraying disinfection and epidemic prevention vehicle. The vehicle uses high-pressure water gun to spray disinfectant, which is convenient for large-area disinfection and epidemic prevention.
Vehicle Type
|
| WLD2082
|
Dimension
| Outline size(mm)
| 4120*1510*2085
|
| Wheelbase(mm)
| 2870
|
| High center of mass(no load,mm)
| 850
|
Quality
| Max total mass(kg)
| 2470
|
| Crew(person)
| 2
|
Pass performance
| Min ground clearance (no load / full load , mm)
| 150/130
|
| Front suspension(mm)
| 600
|
| Rear overhang(mm)
| 650
|
| Approach angle (full load,°）
| 30
|
| Departure angle (full load,°）
| 33
|
| Longitudinal passing angle (full load,°）
| 18.44
|
| Min turning diameter,(mm)
| 6.5
|
| Max gradient（°/%）
| 16/30
|
Category
|
| Company
| Parameter
|
Sprinkler performance parameters
| Effective capacity of water tank
| L
| 1000L
|
| Sprinkling operation speed
| Km/h
| 3-7
|
| Sprinkler width
| m
| 4
|
| Water consumption
| L/m2
| ≥0.2
|
| Nozzle flushing system pressure
| KPa
| ≥300
|
| Water column flushing spray gun flow
| L/min
| ≥60
|
| Spray range
| m
| ＞15
|
| Depth of water absorption
| M
| ≥4
|
Parameters of fog gun
| control mode
|
| Manual(Or remote control)
|
| power
|
| Electric
|
| Range of fog gun
| m
| （8-10）
|
| Fog gun machine flow
| L/min
| 10~20(Adjustable)
|
| Pump pressure
| MPa
| 1~3(Adjustable)
|
| quality
| kg
| About 150
|
| Sprinkler head quantity
|
| 6
|
| Horizontal rotation angle
| °
| 360
|
| Pitch angle
| °
| -10~60
|
| Pump motor power
| kw
| 3
|
| Pump type
|
| 26type
|
| Fan motor power
| kw
| 3
|
| Total power
| kw
| 6
|
| Power Supply
| V
| 380
|
High pressure water gun
| flow
| L/min
| ≥60
|
| Range
| m
| 30~40
|
| Horizontal adjustment angle
| °
| 360
|
| Adjust angle vertically
| °
| 180
|
|
|
| Columnar
|
|
|
| foggy
|
|
|
| heavy
|
|
|
| rain
|
|
|
| moderate
|
|
|
| rain
|
|
|
| drizzle
|
| Specifications
| mm
| GPYL-2
|
| Maximum nominal pressure
| KPa
| 600
|
Detailed Images
1.The combination of fog gun and spray can carry potion to kill and disinfect small and
medium-sized public places in three dimensions. When carrying water, it can inhibit PM2.5 haze and fresh air.
2.Adopt professional spray nozzle of environmental sanitation to spray water on small road surface, so as to realize the
operation of road surface washing, cooling and dust reduction.
3.The combination of anti-aircraft water gun and hand-held water gun can be used to spray and wash the high and low positions of landscaping and pesticide spraying in small and medium-sized public places, as well as to wash the construction buildings and
community buildings of factories, mines and enterprises.
4.Emergency fire fighting for small fire in the early stage.
5.With the help of propaganda horn, LED display on the roof and protective clothing for operators, the epidemic prevention
management and education will be deepened.
Manufacturing Technique
Related Products
Certifications
Company Introduction
Wuling sightseeing car is designed and manufactured by Liuzhou wuling automobile industry co.,ltd, which has more than 30 years experience in vehicle industry.
>>
