1000t Steel Wire Rope Swaging Machine

Product Description

GT steel wire rope pressing machine is a new generation of wire rope rigging processing equipment, which is developed with advanced
technology and processes by Xingtai Group. GT pressing machine is with compact institution, easy to operate, high efficiency, beautiful
appearance. The machines have national patent certificate(ZL 2007 2 0195552. 8.) and are certificated by EU standards-CE.
Pressed slings are with high strength conclude and safe load. Comparing with conventional splicing technology, pressing machine can
greatly improve the processing efficiency and save wire rope. Xingtai pressing machine have widely used in metallurgy, mining, ports,
railways, electricity and other industries. Xingtai machines have exported to UK, Australia, the Netherlands, Malaysia, Poland, South
Africa, Thailand, Russia, Latvia and so on.

Product Specification
Mode No.	GT-1000T
Max press power (KN)	10000
Max wire rope diameter in multi-pressing (mm)	Φ56
Max working pressure (Mpa)	56Mpa
Max piston movement (mm)	200
The up speed of piston (mm/sec)	4.8
The down speed of piston (mm/sec)	10
Total length (mm)	2100
Total width (mm)	1100
Total height (mm)	2000
Accessory	Seals,key,use manual
Package	Standard export package
Video	Yes
Delivery time	30 days
Features
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface
2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life.
3. Xingtai use latest materials, Combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
5. Piston can be stopped any position.
How to operate machine
1. Fix mould, tight the bolts on the left of both tool set;
2. Adjust pressure according pressure table shows on machine;
3. Put sleeve/ferrule with wire rope on the middle of mould vertically;
4. Operate pedal rise switch, the piston will rise and rising pilot lamp lights; Auto-stop when reach adjusted presure; operate down switch and take out pressed wire rope;
After-sales services
24 hours around the clock & 12 months warranty
Life-long maintenance service for the product

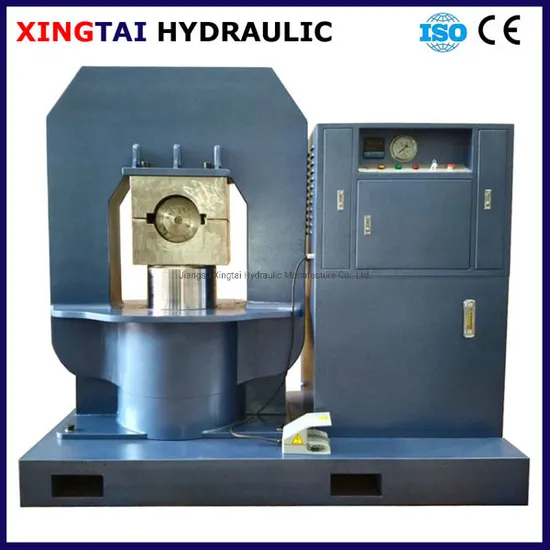

Image of GT-1000T Steel wire rope swaging machine

---
