| US$580,000.00 | 1 Set (MOQ) |

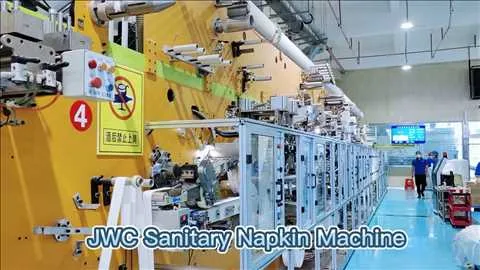

| Main functions and features 1. It can produce ultra-thin or fluffy pulp cotton core type sanitary napkin, which is fast-easy package. 2. Main material like Non-woven, PE film, packing film, air-laid paper auto splicing, tension control, auto guider and unqualified parts will remove automatically. 3. Cutter material use 45 # steel, extend life of the cutter. 4. Higher speed crusher machine can crush treated or untreated fluff pulp. 5. Touchable Screen: Motor switch on/off, running speed, time, counting pieces, parameter setting, alarm, error display, error enquiry (functions setting appear on screen are different according to different machine type) 6. Machine with safety door | Optional device: 1. Perfume adding device 2. Inner core printing device 3. ADL adding device 4. Counting machine |
| 1.The sanitary pads machine has reasonably solid square steel frame2. Crusher system3. Fluff forming system 4.SAP feeding system 5.Tissue, roll diameter φ800mm (airlaid paper,roll diameter φ1000mm) supply:6. Fluff core wrapped by tissue 7.Absorbent paper supplyφ1200mm8.Absorbent paper short cutting device9.Fluff core inner cut device 1 set, adopt the frame type tool holder structure to improve the service life of the tool roller10. The waste at both ends of the core body is sucked and collected11.Top sheet nonwoven(perforated film) supply, roll diameter φ800mm12.ADL (blue chip) supply,φ600mm13. Bottom film supply, roll diameterφ600mm14.Bottom nonwoven supply, roll diameterφ800mm15. Central release paper device, roll diameter: φ500mm | 16. Central release paper cutter17. Forming cutter18. Wastage recycling unit 19. Product 180 degree overturn20. Wing release paper adding unit, φ500mm21. Wing release paper cutte22. Product 90 degree turn round23. Packing film supply, roll diameter φ800mm24. packaging film and product adhesive roller25. Second grade warp26. Product quick easy package exhaust 27. Quick easy tape adding unit 28. Quick easy package sealing29. Quick easy package cutting unit 30. Reject exist, auto rejecting (air blow)31. Two way output device32. Reserve stacker and auto bagger machine33. Driving system34. Air supply |
| 1 | Design speed | 1200pcs/min (300M/min) |
| 2 | Working speed | 1000 pcs/min |
| 3 | Qualified rate | 98%(calculate based on 7.5 hours, the rate between qualified products and total production quantity, except substandard products caused by glue applicator error) |
| 4 | Production efficiency | ≥90%( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity) |
| 5 | Capacity | 300KW (Not including the glue applicators) |
| 7 | Power | Three phases four wires 380V/50Hz (ground wire) |
| 8 | Wire | 3×120mm2+1×50mm2+1×25mm2 |
| 9 | Lowest pressure | 6 kg/cm2 ≥0.6mpa |
| 10 | Air compressor | 2.8 m3/min |
| 11 | Total weight | About 70 tons |
| 12 | Machine size | 29×3×4.5 M (L×W×H) |
| 13 | Working space | 38×7×4.5 M (L×W×H) |
| 14 | Machine color | Off-white (can be changed by order) |
| 15 | Product size | One size (according to order) |
| 16 | Containers | 4×40HQ |
| 17 | Packaging: | PE cover packing in container |
