Product Description
Product Description
Applications

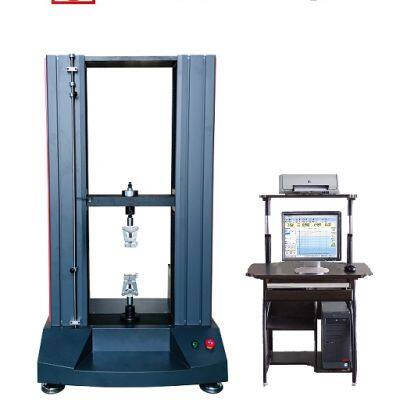

Computer Control Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system can make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching, etc.
WDD Series Main Specifications:
Model
| WDD-5; WDD-2; WDD-1; WDD-0.5;
WDD-0.2; WDD-0.1; WDD-0.05
|
Max. Load
| 5kN; 3KN; 2KN; 1KN; 0.5KN; 0.2KN; 0.1KN; 0.05KN
|
Load accuracy
| ≤±1%
|
Load range
| 2%-100% of full scale
|
Test speed
| 0.01-500mm/min
|
Speed accuracy
| ≤±1%
|
Displacement resolution
| 0.01mm
|
Tensile space
| 600mm
|
Compression space
| 600mm
|
Test width
| 400mm
|
Dimension
| 650×450×1300mm
|
Power supply
| 220V, 1ph, 0.5KW
|
Weight
| 120KG
|
Grips
| Wedge type, plate type and other grips as consumer’s demand
|
Load frame type
| Double column
|
>>
