digital pvc membrane welding machine

Product Description

Product Description

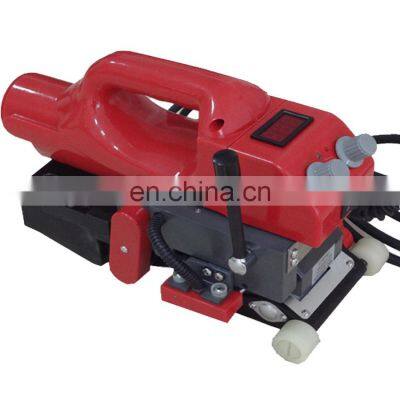

digital pvc membrane welding machine
Product Description
Application
CL800 series geomembrane welding machine is can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on . It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on .
Feature
1. The series welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation
2. Speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor . It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load.
3. Also this series welding machine is stable in performance despite of external temperature and voltage variation
4. This series welding machine is easy operating ,high welding speed and good work quality
Technical data

Voltage	220V
Power	800W
Frequency	50HZ
Heating temperature	0-450 degree
Welding thickness	0.2mm-1.5mm
Overlap width	100mm
Welding width	12.5mm×2, interior cavity 12mm
Gross weight	8.5kg

Operation principle
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain . Slide carriages drive the hot wedge and insert it between the two base materials , at the same time lever presses pressure rollers and engages the two fused base materials .
Supplied Accessories
Protector tube : 4pc ( 2pc 4A and 2pc 1A)
Cross rubber pad for coupling : 1pc
Philips driver : 1pc
Inner hexagonal spanner : 2pc
Slilica gel wheel : 1pair
Packaging & Shipping
1. Packing by aluminium box
2 . Packing size : 40cm*33cm*25cm
3. Shipping by express , such as DHL , Fedex or other way .
Our Services
1. Our machine warranty one year
2. When shipping machine , we will provide necessary accessories .
3.We will provide best technical Support .
4. Fast shipping product .
Regarding our machine , if you need more information about it , please free to contact u , we will do our best for you .

---
