1*16 Fiber Optic Singlemode Stainless Steel Tube APC Upc Mini PLC Splitter

Product Description

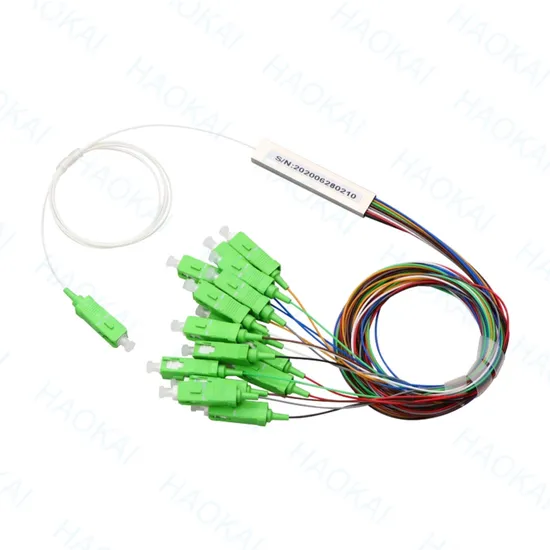

1*16 Fiber Optic Singlemode Stainless Steel Tube APC UPC Mini PLC Splitter Detailed Photos
Product Description Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.

Product application 1. FTTx Systems.
2. Digital, hybrid and AM-Video systems.
3. LAN,WAN and Metro Networks.
4. CATV systems.
Performance characteristics 1. Low Insertion loss and Low PDL.2. Uniform power splitting.3. Excellent environmental stability.4. Compact size and various package.
Product Parameters

Category		Specification
Test Wavelength		nm		1310&1490&1550
Insertion Loss	P Grade	MAX	dB	16.5
	S Grade			16.7
Channel Uniformity		MAX	dB	1.5
Polarization Dependent Loss-PDL		MAX	dB	0.3
Directivity		MIN	dB	55
Return Loss		MIN	dB	55
Adapter Insertion Loss		MAX	dB	N/A
Working Wavelength		NM		1260~1650
Storage Temperature		ºC		-40~+85
Operating Temperature		ºC		-40~+85
