PE Pipe Extrusion Machine PPR Pipe Extrusion Machine//Extruder Production Line

Product Description

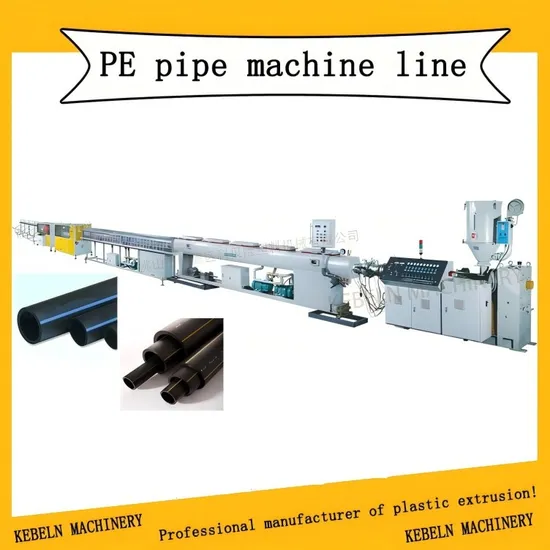

This extrusion line is suitable for producing all kinds of PE pipes of water supply, draining or industry cable pipe. The main machine of this extrusion line is the single-screw extruder. The accessorial machines are vacuum forming bath, traction machine, cutter and product stacker.

Model	Pipe range (mm)	Extruder model	Max. capacity (kg/h)	Max. speed of traction (m/min)	Total installation power(kw)	Length of production line(m)
KBL-63PE	Φ20-63	KBL-65-33	250	32	150	37
KBL-63PE	Φ20-63	KBL-90-33	500	32	330	45
KBL-160PE	Φ50-160	KBL-75-33	350	10	210	39
KBL-250PE	Φ75-250	KBL-75-33	350	8	230	44
KBL-400PE	Φ160-400	KBL-90-33	600	1.6	350	45
KBL-630PE	Φ315-630	KBL-120-33	800	1.2	480	58
KBL-800PE	Φ500-800	KBL-150-33	1000	0.8	650	60
KBL-1000PE	Φ630-1000	KBL-150-33	1000	0.8	750	60
KBL-1200PE	Φ630-1200	KBL-150-33B	1200	0.4	820	80
KBL-1600PE	Φ900-1600	KBL-120-33*2	1500	0.6	820	90

Kebeln Plastic Machinery Co., Ltd is one of the leading manufacturers of plastic extrusion machines for pipes, profiles, sheets extrusion. It established in 2005. As one of the top China leading manufactures, the annual production of Kebeln is up to 1000 units. We supply various kinds of extrusion lines equipped with different capacity from 1KG to 1500KG of extruders with Chinese/English PLC automatic control system according to customers' requirement.
Kebeln is located in Shunde District, Foshan City, Guangdong Province. It covers an area of over 15000 square meters with over 10 million investment of fixed assets and the excellent equipments. Kebeln is committed to provide the first-class service for the customers from all over the world, and only the superior technology quality and the competitive price. The products from Kebeln are popular in the market. The excellent service of Kebeln obtain the good reputation in extrusion field. Kebeln has been approved by ISO9001: 2000 International Quality Certification.

---
