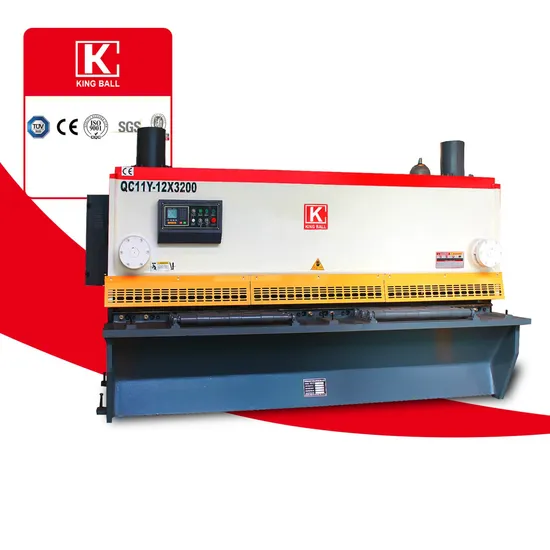

Nc Control System Sheet Metal Shearing Machine

Product Description

Product Description Introducing the Nc Control System Sheet Metal Shearing Machine by Nanjing Jinqiu CNC Machine Tool Co., Ltd. This precision metal cutter is perfect for industrial use, featuring automatic shearing and heavy-duty capabilities.
Product Description:
Main functions and features:
The second generation of shear.
Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity.
Advanced integrated hydraulic system with excellent reliability quality.
Rapidly, accurately, and conveniently adjusting the blade clearance by motor.
The adjustable rake angle can minimize plate deformation.
Designed cutting beam in inner-inclined structure for easy plate fall-down and guaranteed product accuracy.
Shearing in sections, shadow-line cutting.
Counter for the motorized back gauge.
Back support device (optional).

Company Name: Nanjing Jinqiu CNC Machine Tool Co., Ltd.

Hydraulic Guillotine Shearing Machine	QC11Y-12X2500	QC11Y-12X3200	QC11Y-12X4000	QC11Y-12X6000
Cutting Thickness (mm)	12	12	12	12
Cutting Width (mm)	2500	3200	4000	6000
Throat Depth (mm)	100	100	100	100
Cutting Angle (o)	0.5°-2°30'	0.5°-2°30'	0.5°-2°30'	0.5°-2°30'
Backgauge Range (mm)	20-800	20-800	20-800	20-1000
Stroke Number (times/min)	≥6	≥5	≥6	≥5
Main Motor (kw)	18.5	18.5	18.5	18.5
Weight (kg)	8800	10000	14000	30000
Overall Dimensions (LxWxH in mm)	3195X1950X2210	3895x1950x2240	4710x2000x2485	7150x2300x3100

Pneumatic Sheet Support System Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist System Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding Table Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation. Nc Control Shearing Machine Discover precision cutting with our Nc Control Shearing Machine. Ideal for metal sheets, this hydraulic plate shear ensures efficient and accurate results.
Welcome to Kingball by Nanjing Jinqiu CNC Machine Tool Co., Ltd. Kingball, a brand under Nanjing Jinqiu CNC Machine Tool Co., Ltd., specializes in research, design, manufacturing, and sales of high-quality machines. Our product range includes Press Brakes, Shearing Machines, Rolling Machines, Press Machines, Ironworkers, Pipe Bend Machines, and press brake tooling blades.
Established in 2003, Kingball has over 15 years of experience in machine manufacturing. Our company holds certifications from ISO9001, SGS, CE, TUV, and BV, and our machines have been exported to over 60 countries worldwide, including the UK, USA, Italy, Spain, India, and more.
With a 28,000 square meters workshop, advanced production equipment, 220 experienced staff, and a rigorous quality assurance system, Kingball ensures the highest quality standards. We meticulously select materials and manufacture most parts in-house to guarantee practical, reliable, and durable products.
As we expand into the global market, we are seeking agents and partners for cooperation. We offer free technical support and information on all China Machine products. Contact us with your requirements or feedback; we are committed to providing the best service possible.
Explore our range of machines and experience the excellence of Kingball by Nanjing Jinqiu CNC Machine Tool Co., Ltd.
Our Certificates: - ISO9001
- SGS
- CE
- TUV
- BV
Welcome to Nanjing Jinqiu CNC Machine Tool Co., Ltd.! Explore our Nc Control System Sheet Metal Shearing Machine, trusted by customers worldwide.
Sound and Reliable After-sale Service
Sound and Reliable After-sale Service The shearing machine warranty period is 2 years, and shear blades warranty period is 1 year from the bill of lading date. If accessories are damaged during the warranty period (excluding improper human handling), we will replace them for free.
Installation & Commissioning For overseas installation & commissioning engineers, the customer is responsible for visa charges, round-trip plane tickets, daily business travel allowance, and local accommodations.
Technical Support We provide video technical support upon machine receipt for reference. All emails will be replied to within 12 hours, and social media messages will be addressed in real-time.
Production Updates We regularly update customers on machine production progress through photos and videos, ensuring continuous order follow-up and customer feedback.
Contact Information Contact Ms. Yulia, Customer Manager, at yulia@jinqiu.cc
FAQ
Documentation: We can provide relevant documentation including Certificates of Analysis/Conformance, Insurance, Origin, and other export documents.
Lead Time: Sample lead time is about 7 days, while mass production lead time is 20-30 days after deposit payment and final product approval.
Payment Methods: We accept bank transfers, Western Union, PayPal, and irrevocable LC at sight.
Product Warranty: We warranty materials and workmanship, committed to resolving customer issues satisfactorily.
Delivery Guarantee: We ensure safe delivery with high-quality export packaging and specialized hazard packing for sensitive items.
Shipping Fees: Shipping costs vary based on chosen method (express or seafreight) and details of amount, weight, and route.

---
