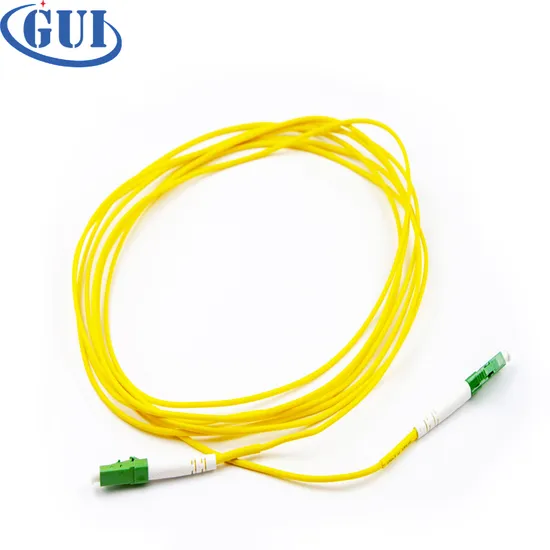

LC/Sc/FC/St/E2000 SMF Single Mode Fiber Patchcord Simplex Optical Optic

Product Description

Product Description
High Quality and Cost-Effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Application
• Telecommunications
• CATV, LAN, MAN, WAN, Test &Measurement
• Medical
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Excellent mechanical endurance
• Good in repeatability
• Good in exchange
Product Specification

Connector Type	LC to LC	Polish Type	APC toAPC
Fiber Count	Simplex	Fiber Mode	OS2 9/125μm
Wavelength	1310/1550nm	Minimum Bend Radius	10mm
Insertion Losss	≤0.3dB	Return Loss	≥50db
Fiber Grade	G.657.A1 (Compatible with G.652.D)	Cable Diameter	0.9mm/2.0mm/3.0mm
Attenuation at 1310 nm	0.36 dB/km	Attenuation at 1550 nm	0.22 dB/km
Cable lacket	PVC	Operating Temperature	-20ºC~+70ºC
Polarity	A(Tx) to B(Rx)	Storage Temperature	-40ºC~+80ºC

Custom OEM
We can provide all kinds of connectors and cables for OEM (SC,LC,FC,ST,MU,MTRJ,MPO/MTP,PDLC and so on)
High Quality Guarantee
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.
Company Profile
Fujian Gui Comm-Tech stocks a wide range of fiber-related and other high technology items.Like many companies that thrive over a number of years, we have carved out several areas of specialization and expertise for which we are known as the industry leader. Many catalog items can be purchased from other suppliers, but a number of important factors make us the preferred choice for many of the world's fiber professionals. These include, but are not limited to: Industry-leading customer service aimed at making the business part of high tech as friendly and painless as possible in part by stocking all the items you need. Not only do we partner with our customers, we partner with our suppliers.Doing business with us should never cost you more. In purchasing through GUI you pay less, but gain invaluable on-site and remote technical and customer support. You gain another partner.Our tenacious emphasis of offering only the highest quality products that have superior value, as opposed to selling lesser quality, cheaper alternatives and knock-offs, which, more likely than not, result in a greater need for reworks, missed delivery schedules, repair/upkeep costs, etc. Emphasis on specialty applications, such as medical, spectroscopy, laser delivery, industrial, sensing, oil and gas, broadcasting, and research, as well as telecom, Datacom, CATV, FTTA and FTTH. FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer in Fujian Porvince, China.
2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.
3.Can you accept small order?
Yes, small order is available. We support new project of customers as we know business is always from small order.
4.What is your warranty period?
More than 10 years for fiber optic cable.
5.What is your delivery time?
Usually within 7-10 working days.
6.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output 53,200 KM
PLC Splitter: annual output 7,560,000 piece
Patch Cord: annual output 15,430,000 piece
7.What is your payment way?
T/T,Online to offline.
8.Can you supply customized products and logo?
Yes. We supply OEM & ODM service.

---
