Cvr CV-80d Professional Audio Full Range Big Power Portable Coaxical Speaker

Product Description

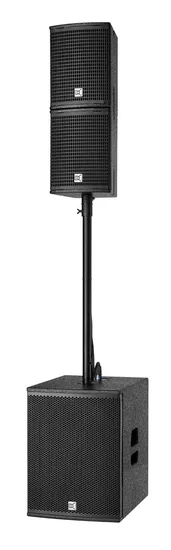

CV-80D is a coxial array system which is made of a 8"woofer, a 1.4"titanium neodymium compression driver. The CV-80D will integrates seamlessly with T-112B array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-80D is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

Model	CV-80D
Type	Two-way coaxial system
Frequency Response	70Hz-18KHz±3dB
Power handling	200W(RMS)800W(PEAK)
Sensitivity	93dB(1W@1M)
Max SPL	110dB(PEAK/1M)
Drivers	LF 1×8"(21mm)woofer 50mm(2in)coil
	HF 1×1.4"compression driver with 34mm titanium diaphragm
Nominal impedance	8 ohm
Coverage	90º
Connectors	2×NL4MP speakon
Finish	Textured paint
Enclosure Material	Plywood
Dimensions	239×314×280mm(W×H×D)
Packing Dimensions	550×400×360mm(W×H×D)/0.08cbm
Net weight	7.5kg
Gross weight	8kg

FAQ
Q1:Can we have our logo or company information on your products or packages?
A1:Sure,we accept OEM/ODM orders,Your logo can be shown on the products by printing,embossing etc,just let us know your requirements.
Q2:Are you a pro-audio manufacturer or trade company?
A2:We are a 100% manufacturer located in Guangzhou,southeast china.we specialize in R&D,manufacturing,sales,system integration and technical support in live sound industry.
Q3:what is the warranty period of your products.
A3:All our CVR products have one year free warranty.And if goods are damaged on arrival,free replacement will be arranged.we also provide a very competitive policy for spare parts,which makes your systems will run smoothly.
Q4:How about the lead time?
A4:About 3 days for products in stock;About 15 days for big quantity or special models,please contact our sales for more details.
Q5:what's the MOQ?how can I pay?
A5:our MOQ is 2 pieces;we accept cash,T/T,Western union and other ways
More questions,please don't hesitate to contact our sales.

---
