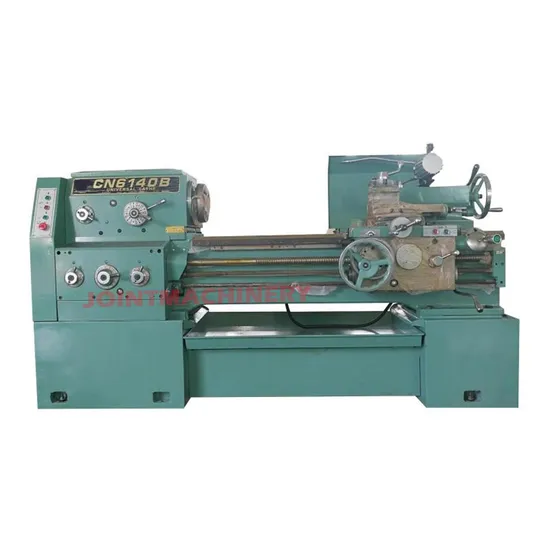

Advanced Conventional Manual Lathe Torno Precision Metal Cutting Lathe Machine

Product Description

√ Unleash excellence in durability and precision with our machine guide way. Achieve superior hardness surpassing HRC52°, courtesy of a high-precision CNC guide way grinding machine. Revel in both exceptional longevity and immaculate accuracy, setting new standards in body machining.
√ Our lathe head box, feed box, and sliding box are masterfully constructed with CNC machine center machining. This meticulous process assures the highest machining precision, ensuring every component not only meets but exceeds the pinnacle standards of excellence.
√ Experience the luxury of impressively low gear noise with our expertly crafted transmission gear. This is achieved through precise CNC gear grinding machining and comprehensive noise testing, promising a serene and smooth operational experience.
1. Quenched Guideway
The quenched guide rail stands as a paragon of hardness and wear resistance, delivering unmatched durability and stellar performance.
2. Tool Post
Elevate your lathe with our standard 4-position tool post. For those desiring added flexibility, opt for the quick-change tool post to further enhance your operational range.
3. Three-Jaw Chuck
Equipped with a standard 3-jaw manual chuck, you have the option to expand your machining potential with a versatile 4-jaw chuck.
4. Tailstock
Featuring a standard manual tailstock, this essential component is ideal for effective management of shaft bar workpieces, ensuring efficiency and reliability.
5. Working Light
Fitted with a working light to boost operator convenience, facilitating a seamless and efficient operational experience.
Advanced Conventional Manual Lathe Torno Precision Metal Cutting Lathe Machine

Model			CN6140
Max swing over bed		mm	420
Center height		mm	210
Max work piece length		mm	1000, 1500, 2000, 3000
Bed rail width		mm	390
Max turning diameter of work piece on tool holder		mm	220
Max turning diameter of workpiece in saddle groove		mm	630
Valid length of gap		mm	240
Through hole diameter		mm	82
Bore hole		mm	90/1:2
Spindle rotation speed		rpm	9-1600
Max transverse travel of tool rest		mm	320
Max travel of small tool rest		mm	145
Distance between spindle center line and tool support surface		mm	about 28
Tool cross sectional dimension (H*W)		mm	25*25
Longitudinal feed		mm/r	0.028-6.43
Transverse feed		mm/r	0.028-6.43
Taper of center sleeve inner hole		mm	MT5
Max movement of center sleeve		mm	150
Max transverse movement		mm	±15
Thread	Inch system		72-1/8t/in
	Metric system		0.5-224
	Module		0.5-112
	Diameter pitch		56-1/4DP
Motor specification			7.5kw 1500rpm
Belt specification			B-2260
Dimension (L*W*H)	1000mm	mm	2625*1043*1275
	1500mm	mm	3125*1043*1275
	2000mm	mm	3625*1043*1275
	3000mm	mm	4800*1043*1275
	3500mm	mm

Shenzhen Joint Machinery Co., Ltd. stands as a beacon in the manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, along with milling and grinding machines. Our unwavering commitment to excellence ensures we deliver machines of superior quality and unmatched service to our global clientele. By adhering to strict quality control, we consistently maintain the highest industry standards. Harnessing core technologies from Taiwan and Germany, combined with cutting-edge production equipment and processes, we assure the pinnacle of product quality and reliability. Our machines are revered for their remarkable precision, stability, and dependability, adeptly meeting diverse, high-demand machining requirements. With a robust global export presence, our products captivate customers worldwide, receiving widespread accolades. Our market influence extends across Asia, Europe, South America, North America, and beyond. We cherish enduring partnerships with clients from various countries and regions, collaboratively creating substantial business value.

---
