Qingdao Calibrating Wooden Planer Sanding Machine

Product Description

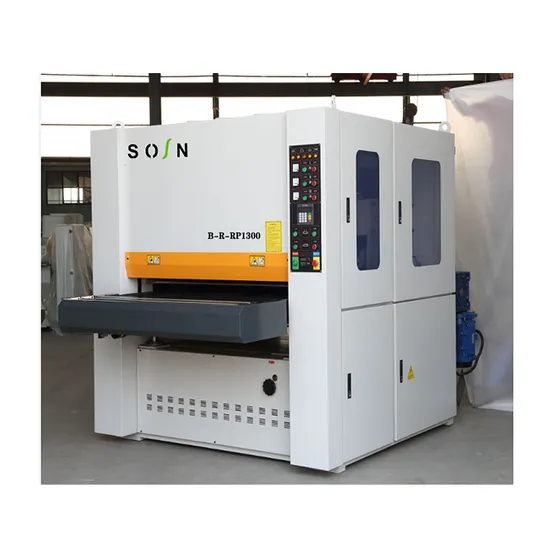

P-R-RP1300 Heavy Duty Woodworking Machine Wide Belt Sanding Planer and brush sanding polishing
Feature Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient. With floating pressure boots, short sand material available. Casting stop device is used to avoid rebounding and hurting the plate during processing. Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.
Main Specification

Working width	1300mm
Min.Working length	500mm
Working thickness	3-110mm
Feeding speed	5-25m/min
Total motor power	80.05kw
Motor for first unit	22kw
Motor for second unit	30kw
Motor for third unit	22kw
Feeding motor	5.5kw
Lifting motor	0.55kw
Abrasive belt size	1330*2200mm
Working air pressure	0.6MPa
Volume of dust collection device	12000m3/h
Overall dimensions	3000*2000*2050mm
Net weight	4800kg
