Double Columns CNC Gantry Machining Center Machine Lm16149 (1800*1400)

Product Description

BRIEF INTRODUCTION

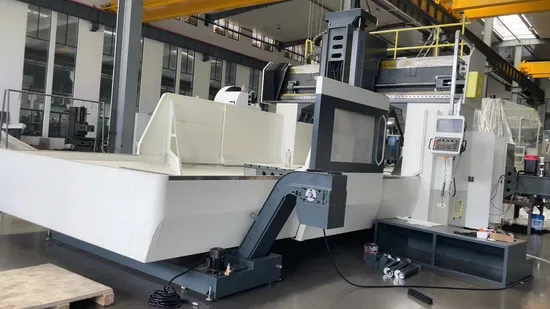

LM Double Columns CNC Machining Center
LM series double columns machining center has a compact structure, wide capacity of machining, good rigidity and vibration resistance. It can do milling, boring, drilling, tapping and other machinings. It is mainly suitable for the precision machining of concave and convex molds in the mold industry, complex cavities and surfaces. It is also suitable for precision machining of large and medium-sized parts in industries such as general machinery, automobiles, aerospace, instrumentation, and textile machinery.
Features of Zhongnan's double columns machining center: 1. LM series adopts high-rigidity gantry symmetrical structure, high cutting rigidity and stable running precision.
2. The beam adopts a stepped design structure to control the force and deformation within the effective range.
3. The Z-axis is equipped with a hard rail headstock as standard. The cabinet adopts high damping and high rigidity ductile iron structure, which can effectively suppress cutting vibration.
4. The whole series can be equipped with imported gearboxes, through hydraulic shifting, two-speed transmission, to achieve high torque output.
The whole machine adopts the gantry structure with moving table. The machine bed is fixed, Worktable moves in the X direction on the bed, the ram moves in the Z direction on the slide seat, and the slide seat and the ram move in the Y direction on the gantry beam. The X and Y axes adopt heavy-duty linear guideways, and the Z axis adopts plastic-coated flat guideway. The spindle box is placed at the lower end of the ram. The whole machine has feature of reasonable design, beautiful appearance and convenient operation.
Imported gearbox is optional to improve cutting efficiency.
XY axis with precision linear guideway, and Z axis with high rigidity flat guideway, which is suitable for heavy load and heavy duty cutting.
The Z-axis could be equipped with linear guideway which is suitable for high-precision machining.
Standard with Fanuc 0I MF control system. Mitsubishi, Siemens and other control systems are also available.
Parameters of Zhongnan's double columns gantry machining center LM2214

Name	Unit	Model LM2214
Worktable dimension(L×W)	mm	2200×1100
Max load of worktable	kg	6000
T groove (quantity×width×distance)	mm	7×22×150
X axis travel	mm	2200
Y axis travel	mm	1400
Z axis travel	mm	900
Spindle end to worktable	mm	150-1050
Spindle center to column	mm	1400
Spindle type		BT50
Speed of spindle A	RPM	Belt:Max speed 6000(gear 1.5:1 optional)
Speed of spindle B	RPM	Z F gear box+belt Max 6000(two gears reduction 1:1;4:1)
Speed of spindle C	RPM	Gearbox drive: Max speed 6000RPM (two gears reduction 1:1;4:1)
Power of spindle	Kw	15/18.5
CNC system		Fanuc 0i-MF/MITSUBISHI M80/SIEMENS
Rapid feed of X/Y/Z	mm/min	12/12/12
Capacity of magazine(ATC)	pieces	24
Positioning accuracy	mm	0.016
Repositioning accuracy	mm	0.012
Air supply	Kg/cm2	6
Weight of machine	Tons	18
Dimension(L×W×H)	mm	6100×3900×4500

Features:
1. Spindle
Adopt High-speed and high-precision spindle unit, which is designed with an air curtain protection function and equipped with cooling, temperature rise of the spindle is small, thermal deformation is small to get better machining accuracy.
2. Spindle
Equipped with 24 pieces drum magazine. The tool change response speed is fast, stable, safe and reliable. The tool can be changed nearby, shorten changing time.
3. Large span column
Large span column design with reinforcing ribs inside to increase rigidity of machine to increase stability of machining.
4. High Precision Ball Screws and Linear Guideways
Imported C3 grade ball screw and pre-tensioned backlash-free design to achieve high precision.
Imported P grade heavy load linear guideways are used to ensure no vibration during cutting and produce high-quality parts.
5. Standard with latest Fanuc control system, Siemens or Mitsubishi available as optional
Standard Configurations

No.	Name	Quantity	Remark
1	Fanuc 0i MF	1
2	Remote	1
3	Air gun/water gun	1
4	Automatic lubrication	1
5	Spindle blowing device	1
6	Air curtain	1
7	Standard accessories	1 set
8	Documents	1 set
9	Gear box spindle	1	Optional
10	24T drum magazine	1	Optional
11	Right angle milling head	1	Optional

Company Profile
Nantong Zhongnan Intelligent Technology owns Zhongnan CNC technology, Zhongnan Intelligent, Xinsheng CNC technology and other subsidiaries such as foundry factory. Since its establishment in 2000, Zhongnan started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production lines of CNC vertical machining center, high-precision gantry machining center, horizontal machining center, CNC vertical and horizontal milling machines, Zhongnan is one of the reputed manufacturers covers full production lines in the metal cutting machines industry in China. The products of the group company are widely used in defence industry, aerospace, automobile, green energy, mold and other fields of manufacturing.
Zhongnan Intelligent Technology has a production park covers 100,000 square meters. There are more than 380 employees, 30 senior engineers, and 20 R&D engineers. Production capacity covers the entire production chain of casting manufacturing, machining, painting, assembly, commissioning, inspection, etc.
100,000 square meters factory.
Factory Workship Show
Metal workshop 1 Metal workshop 1 Painting workshop
Assembly workshop 1 Assembly workshop 2 Machines ready in stock

Sheet metal workship 1 Sheet metal workship 1 Foundry plant

---
