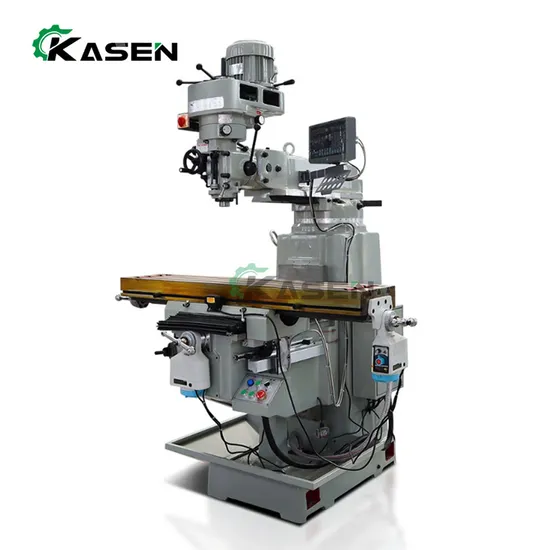

X6325 High Quality Vertical Knee-Type Milling Machine with CE Certificate

Product Description

X6330 X6325 Horizontal and Vertical Turret Milling Machine for Sale
Product Description
Feature:
1 .Taiwan original milling head, NSK P4 spindle bearing. 2.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
3.Work Table Made by HT200-250 High Strength Cast Iron
4. With the horizontal milling function
5.Plastic Guide Way Increase The Precision And Service Life
6.Three Axis can Fix (X/Y/Z) Automatically Feed .
7 .Taiwan original milling head, NSK P4 spindle bearing.
8. Dovetail Type , Rectangle Type ,Horizontal Type .Can Choose Main technical specifications:

Model	Units	X6325	X6330
Table size(mm)	mm	1270X254	1370X305
Long travel(mm)	mm	780	900
Cross travel(mm)	mm	400	400
Vertical travel(mm)	mm	370	420
T-slot No. and size		3x16	3x16
Ram travel(mm)	mm	500	500
Distance from spindle nose to table surface(mm)	mm	0-500	0-500
Spindle hole taper	mm	Standard:R8 Optional: ISO30/ISO40	Standard:R8 Optional: ISO30/ISO40
Spindle travel(mm)	mm	127	127
Spindle speed		Standard:16steps Shift grade: 50HZ:65-4500 60HZ:80-5440 horizontal 45-1350(12 step less)	Standard:16steps Shift grade: 50HZ:65-4500 60HZ:80-5440 horizontal 45-1350(12 step less)
		Optional : stepless Variable: 65-4500	Optional : stepless Variable: 65-4500
Auto quill feed	kg	Three steps: 0.04/0.08/0.15 mm/revolution	Three steps: 0.04/0.08/0.15 mm/revolution
Telescopic stroke	mm	470	470
Spindle power	KW	V 2.2KW/3HP/ (Optional 5HP) H 2.2KW / 3HP	V 2.2KW/3HP/ (Optional 5HP) H 2.2KW / 3HP
Head swivel	°	90	90
Head tilting	°	45	45
Dimension of package	mm	1516x1550x2235 1680x1790x2235(include 2 sets) 1650x2285x2235(include 3sets)	1516x1550x2235 1680x1790x2235(include 2 sets) 1650x2285x2235(include 3sets)
G.W./N.W. (kg)	Kg	1100/1450	1200/1550

After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
