300L/500L Micro Brewhouse System 3-Vessel Beer Brewery Equipment for Sale

Product Description

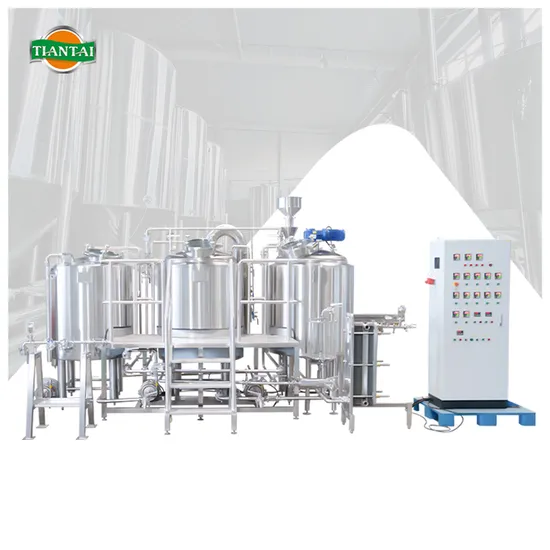

Three Vessel Beer Brewing Equipment
Product Description
The micro beer brewery equipment is one of our most hot sale capacity for starting a new beer brewing business and it is the most typical and common system in Microbrewery, Brewpub, Bar and Restaurant etc.

The tank is usually made of stainless steel. If you want to display your beer equipment, the red copper is a better choice, because it has a luxurious appearance to display your brewing process. However, the budget is higher than Stainless Steel.

We use strict technology, and each tank has passed a rigorous water vapor leakage test to ensure normal operation under standard atmospheric pressure. The request of the electric is 3phase or single phase, If your equipment is large, 3 phase electric is necessary; if you only want to use it for home, hotel or microbrewery, you can choose the single phase.


Product Features
1) The brewhouse combination is MT + LT + KWT + HLT.
2) Grist hydrator placed on the top of mash tun, which can be used for pre-mashing, and remove dust.
3) Wort collect rings under the bottom of filter, which has 4 wort outlets. So the wort can flow through by multi routes rather than single route, it is good for speeding up filtering progress.
4) Anti-Rinser under the bottom of filter as well, which was designed 4 spray nozzles. It can be used for cleaning false bottom and loosen grain bed during lautering.
5) Flowmeter for testing hot water consumption for sparging or mashing.

Specification

Output/Brew	10HL	12HL	15HL	20HL	25HL	30HL	35HL
Brews/Week	6~12	6~12	6~12	6~12	6~12	6~12	6~12
Output/Week	60~ 120HL	72~ 144HL	90~ 180HL	120~ 240HL	150~ 300HL	180~ 360HL	210~ 420HL
Electric Supply	3phase/380(220, 415,440)v/50 (60)Hz Single Phase/ 220(110, 240v)/50(60)Hz
Heating Source	Steam/Directly Fired
Area Request	>70M2	>80M2	>100M2	>120M2	>140M2	>150M2	>180M2
Brewmaster	1	1	1	2	2	3	3

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

Output/Brew	2HL	3HL	5HL	6HL	8HL	10HL
Brew/Week	2~6	2~6	2~6	2~6	2~6	2~6
Output/Week	4~12HL	6~18HL	10~30HL	12~36HL	16~48HL	20~60HL
Electric Supply	3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source	Electric/Steam
Area Request	>25M2	>30M2	>45M2	>50M2	>60M2	>70M2
Brewmaster	1	1	1	1	1	1

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

Brewery Configuration

Milling System	Mill machine	Stainless steel
	Grist case	Stainless steel
	Flexible conveyor	Outer PPR or Stainless steel
Brewhouse System	Mash tun	-Inner:3mm; outer:2mm-Motor agitation-Steam jackets/Electric elements/Fire direct heating
	Lauter tun	-Inner:3mm; outer:2mm-Rack knife system -False bottom filter -Wort Grant
	Brew Kettle	-Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating
	Whirlpool Tank	-Inner:3mm; outer:2mm-Side tangent whirlpool inlet
	Hot water tank	-Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating
	Accessories	-Mash pump; Heat-exchange plate; Hop back system; Brewhouse Pipes;
Fermentation System	Fermentation tank	-Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation -Cooling jackets
Cooling System	Glycol water tank	-Inner:3mm; outer:2mm
	Cold water tank	-Inner:3mm; outer:2mm
	Accessories	Chiller; Glycol water pump; Pipes & Valves
CIP System	Acid tank, Caustic tank, Trolley	-Pump; Pipes & Valves-Accessories of the CIP System
Control System	-Automatic/Semi-auto
Filtering System	Candle type diatomite filter/Membrane filter/Bag filter
	Bright beer tank	Double-layer with insulation
Filling System	Glass bottle line	Capacity:800-1200 BPH-Washing heads:8; Filling heads:8; Capping heads:3 -Optional: Capacity:1500-2000 BPH -Washing heads:16; Filling heads:16; Capping heads:6
	Canning line	Capacity:1000-1500 CPH-Filling heads:12; Capping heads:1
	Keg system	Keg filling machine; Keg washing machine; Keg washing and filling unity machine

Company Information

Tiantai
Our company is a professional beer equipment manufacturer. We are specialized in professional design, manufacture, installation and commissioning of various beer equipments and supporting facilities for about 16 years and we got CE PED certificate, ISO9001 certificates as well
as Factory Audit report by SGS and TUV. Our products include mashing equipment, fermentation equipment, yeast spread cultivation equipment, and refrigeration equipment for small and medium-sized brewery, hotel, pub and etc.

Our Advantages
1. One Stop Service from malt to beer
2. Design Customization: Tanks structure, pipeline, installation
3. 5 Years Warranty for tanks, free delivery for broken accessory within warranty
4. With ISO TUV SGS certificate, the product meets the GB/CE/PED/ASME standard
5. Local service in EUROPE, AUSTRALIA ETC
6. More than 1100+ global users

After Sales Service

a.) Free consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Free debugging instruction of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques;

g.) Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free;

FAQ
1.Q:Does your company have foreign installation experience? A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.2.Q: Do you have a professional engineer or after-sales team in our country? A: Yes, our equipment is sold to 103 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.3.Q:How can you guarantee the delivery date of the equipment after we place the order? A: The delivery time can be ensured through ****** Credit Insurance orders.4.Q:What payment methods are supported? A:T/T, L/C, Credit Card, VISA, Apple device, Western Union.5. Q: How long the warranty will be? A: 5-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.6. Q:How about the installation and training? A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.7.Q: Can I be your company's sales agent? A: Yes, it's our pleasure. We very much welcome you to join us. Please contact us to discuss specific details. 8.The price does not include electrical appliances, etc.

---
