Welcome to visit

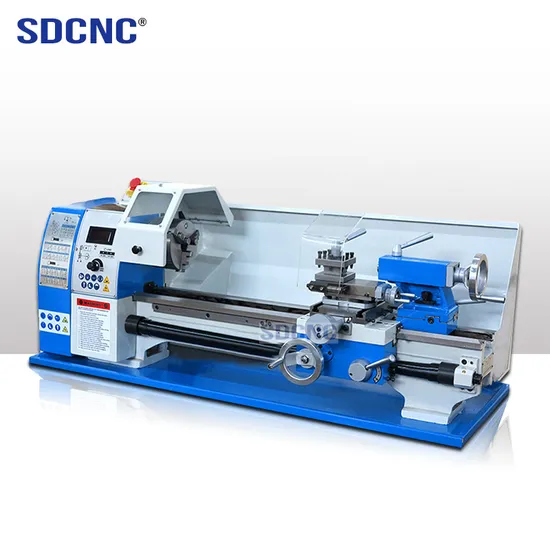

Sdcnc Jy250V Small Machining Lathe High Precision Mini Lathe Multi Functional Home Machine Tool

US$1,100.00-1,550.00 1 Piece (MOQ)

Basic Info.

Model NO.
JY250V
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Heavy Duty Lathe Machine
CNC or Not
Nomal
Core Components
Bearing, Gear, Motor
Name
Small Lathe
Transport Package
Wood Packing
Specification
1130 * 550 * 405
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
113.00cm * 55.00cm * 40.00cm
Package Gross Weight
120.000kg

Product Description


CE High precision mini /small manual metal lathe JY250G
6 speed gear change (AC asynchronous motor) with double screw lead
Product Parameters

Specifications JY250VF
Max. swing over bed 250mm
Distance between centers 550mm (optional 750mm)
Max. swing over cross slide 150mm
Spindle bore 26mm
Spindle taper MT4
Range of spindle speed 50-2000rpm
Step of spindle speed variable
Range of metric threads 18kinds (0.2-3.5rpm)
Range of imperial threads 18kinds (8-56TPI)
Top slide travel 70mm
Cross slide travel 115mm
Tailstock quill travel 70mm
Taper in tailstock spindle MT2
Motor power 750W
Packing size 1320*570*610mm
N.W/G.W 120/140kg

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
