US$3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Measurement Object
Road Marking
Precision Measuring Device
Precision Measuring Device
Certification
GB, CE, ISO
Measurement Items: Retroreflection Coeff
Mcd.M -2 .Lx -1
Measurement Value Range
0-4000
Transport Package
Wooden Box
Specification
750*400*430mm
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
50.00cm * 20.00cm * 36.00cm
Package Gross Weight
10.000kg
Product Description

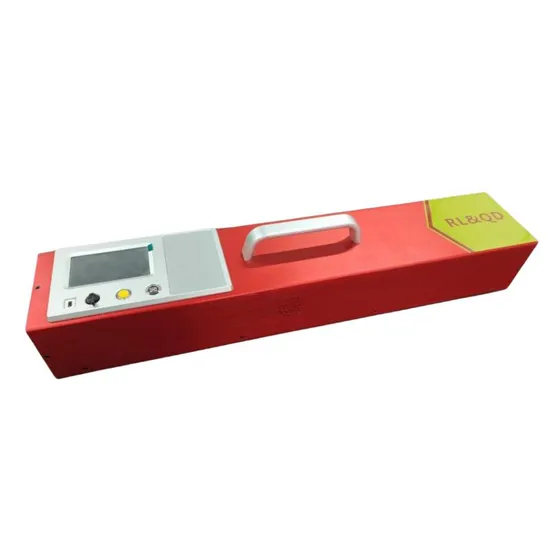

Product Description Horizontal Retroreflectometer Road marking reflecting measuring instrument retroreflectometer
This LA-302D marking retroreflective coefficient measuring instrument is a portable field measuring instrument used to measure the retroreflective characteristics of road markings. The characteristic researched by LA-302D instrument is mainly to simulate the brightness of road markings visible to the driver under the illumination of motor vehicle headlights at night, and the measured parameter is the retroreflective coefficient of night light.Functional characteristics:Support fast measurement (retroreflective coefficient value measured within 3 seconds)Support simple calibration procedureLarge battery capacity, long standby time, and supports fast chargingSupport high-brightness LCD transparent touch screen, the operation interface can be seen clearly under lightSupport multiple measurements to calculate the averageSupport real-time broadcast of measurement dataSupport real-time broadcast on the spot, and directly print out the testresults on the spot through the printerUse the touch keyboard to input English and charactersSupport real-time display of on-site temperature and humidityEnglish menu operation mode can be opened to foreign customers to facilitate their useSupport smart standby management, the system automatically enters sleep state when there is no operationPortable instrument with small dimensions and light weightSupport for calibrating two colors at one time before testing in the same field environment, no need to calibrate each time you test or encounter different colors
Detailed Photos
Product Parameters
| Measurement items: retroreflection coefficient | mcd.m -2 .lx -1 |
| Measurement value range | 0-4000 |
| Observation angle | 1.05° |
| Incident angle | 88.76° |
| complementary angle | 1.24° |
| Color temperature of light source | 2856K±50k |
| Measuring area of light hole | 340mmx95mm |
| Data storage space | 8GB |
| Built-in battery capacity | 13Ah |
| Charging power supply | DC 8.4V |
| Use environment temperature | -15ºC~+40ºC |
Packaging & Shipping
After Sales Service
>>
