Professional Td Cm500-Dw Diesel Concrete Mixer for Sale

Product Description

Concrete Mixers
TDCM500-DW
Ningbo Ace Machinery Co.,Ltd
Wholesale Construction machinery 500L Cement Mixer Concrete Mixer

Scope of application:

The concrete mixer ranges from the large-duty mixing truck to the mini mixer. It is a useful tool for either
homeowners who attempt small concrete projects or contractors who should complete large-scale projects where
large batches of concrete and mortar need to be mixed. The machine is designed for safe, reliable functioning as
well as large capacity.

Product Application:

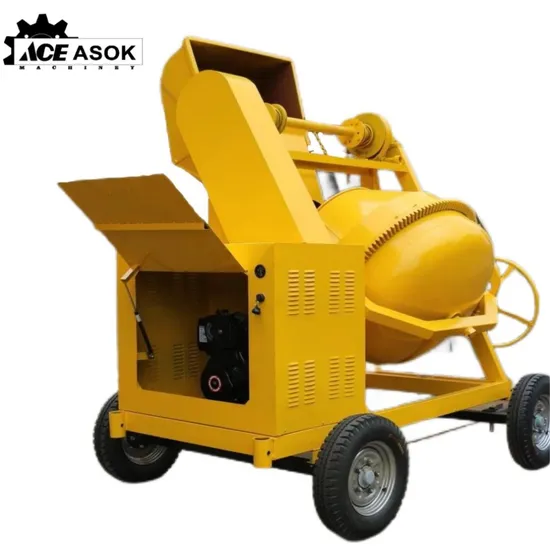

The TDCM500-DW Concrete Mixer with Diesel Engine Power and Wire Rope Hoisting Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 80mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.50 cubic meters of concrete.
The TDCM500-DW Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

Features:

1) Chassis- mounted Big Water Tank
2) Mechanical Tilting Drum
3) Robust and Strong Trailing Rod
4) Wire Rope Hoisting Hopper
5) China TOP Brand Powerful Diesel Engine
6) Middle Situated and Bolt Connected Design of Grand Gear Ring.

Production plant

Model	TDCM500-DW Diesel Hydraulic Concrete Mixer with High Quality
Discharging Capacity	500 L
Loading Capacity	400 L
Productivity	8-10 m3/h
Bags of Cement per Batch	1.5 Bags Cement
Drum Thickness	8 mm
Drum Size	Φ950×900 mm
Engine Option	1.Air-cooled Diesel Engine 186FS (10HP) 2.Water-cooled JIANGDONG Diesel Engine S1100(16HP) 3.Water-cooled CHANGCHAI Diesel Engine ZS1100(16HP)
Transmission Way	By Chain
Drum Rotation Speed	20-22 RPM
Max. Size of Aggregate	80 mm
Tyre Size	4×(5.00-12)
Total Weight	1200 kg
Packing Size (L×W×H)	2200×1300×2250mm
Container Loading Plan	5 Sets Per 20GP, 10 Sets Per 40 HQ

Size	2200 (L) * 1300 (W) * 2250(D) mm
Weight	1200 kg
Packaging Details	The normal package is by big PLASTIC BAG . 5 Sets Per 20GP, 10 Sets Per 40HQ

Factory production


Packaging & Shipping
Exhibition map

Hot Products

CM350-2A	CM350-4A	CM350-2C	CM350-D
JZC350-EML	CM-120H	JZM-350	JZC-350DEW
JZC-350DHL	TDCM-500DHL	JZC-500DH	Concrete pump-HBTS

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
