Harrow/Plough Disc Blade Coulter Blade Harrow Parts for Agricultural Tractors

Product Description

Yucheng Hongri Machinery Factory
Product Technical Parameter
Product description:

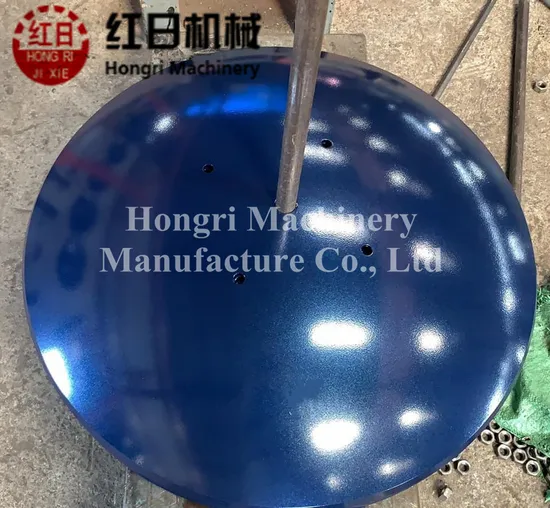

Name: Hongri Boron 65Mn Steel Disc Blade Disk for Agri Farm Tractor Harrow Plough Plow Longer Working Life
Disc blades are suitable for disc harrow and agricultural machine, as usual the material is 65Mn spring steel and 40MnB steel. As usual 65Mn spring steel hardness is 38-45HRC, 40MnB steel hardness is 43-48HRC. We are able to producting a lot of kinddisc blade, max diameter is 46inch (1170mm).

Material:	65Mn, Boron steel
Hardness:	HRC38-45, HRC42-50
Thickness:	3.5-12mm
Size/dimension:	12"-46" (305mm-1170mm)
Edge of Disc Blade:	Round, Notched, Flat, Waved or Small waved.
Shape:	Round, Notched, Flat, Waved or Small waved.
MOQ:	100 pcs
Production Capacity:	7 Million pcs annually
Surface treatment:	Painting
Colors:	Blue or black (matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Hole Size:	Customized
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic:	Highest wearlife due to special edge making process

Common Specifications of Disc
Dia.		Concavity	Thickness
mm	inch	mm	mm
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

Note: We can produce according to your specific requirements on size and shape of the disc blades.
Products photos:

Manufacture Procedures:
Packaging:
Our Company :

Business type	Manufacturer
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001, SGS
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality and excellent performance, our products are annually exported to countries around the world, and we have gained absolute trust from our customers.

After-sales Service:
12 months guarantee of the main parts.
We will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ: 1. Q: Full price list for these products A: Please understand we have a very wide product range, generally we don't offer full products price list. Kindly please specify the product model, so we can quote you accordingly.
2. Q: Business terms A: Shipment time: 25-40 days after your payment Shipment: By sea Loading port: Qingdao port, China Destination port: ...To be advised Payment: T/T, L/C Warranty: 1 year 3. Q: How can I order from you?
A: Please send us your enquiry list, and we will reply you within two working days. 4. Q: If the figure I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample. 5. Q: Why choose Hongri for cooperation? A: Comparing with our competitors, we have much more advantages as follows: 1). More than 30 years experience in manufacturing farming machines. 2). More Professional Sales persons to guarantee better and expert service. 3). Wider product range of agri machines for your choice. 4). More newly developed products to highlight you among your competitors and help you avoid price competition. 5). Stronger capability for mass production and bulk shipment. 6). Better quality to guarantee better Credit. 7). Faster delivery time: Only 7 days. 8). Much stricter quality check procedures before shipment. 9). More considerate after-sales service. 10). More famous brand: HONGRI brand and "CE" certificate. 11). Lower repair rate and lower bad-review rate. 12). We have American branch office to show our main products there, which helps us to fasten the speed of responding to our clients' requirements.
If you have any question, please be free to contact me!
Have a nice day!

---
