China Customized Standard Precision Surface Grinding Machine Trade

Product Description

Product Description
Foshan Customized Standard Precision Surface Grinding Machine Trade

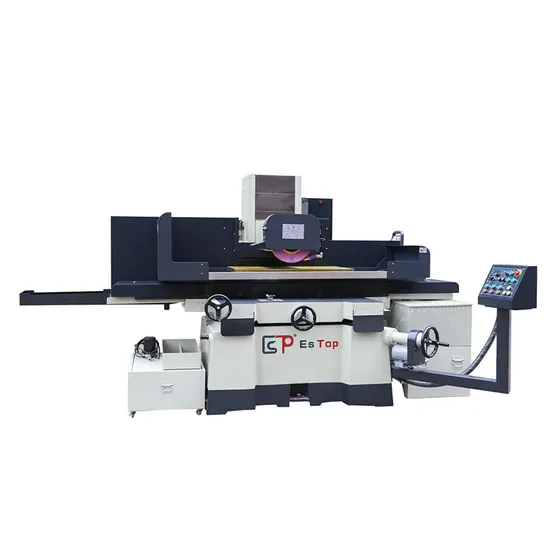

Saddle Type Surface Grinding:
These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
-High precision spindle and spindle motor with lower vibration and noise
-Durable and suitable for precision grinding
-Intensive research planning and manuacture by high-elasticity structure
-Excellent durability and heavy grinding available
-4-point suspension mode cross travel guide way
Product Parameters:

Main item	Saddle Type Surface Grinding machine	Unit	ETA-510
Worktable	Electromagnet table size(x*y)	mm	1000x500
	Left and right Xaxis travel	mm	1200
	Front/back Y axis travel	mm	560
	Max center of wheel to table	mm	515
	Worktable Maximum loading copacity	kg	700
	Table t-slot specification	mm*n	18x3
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Hand wheel feed degree scale	mm	0.02/5
	Front/back Automatic feed	mm	0.1-10
	Front/back(50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	Φ350xΦ127x20-50
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Hand wheel feed degree scale	mm	0.005/1
	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	10x4
	Up and down, The Z axis motor	W	150/750
	Hydraulic motor	HP*P	3x 6
	Cooling motor	W	90
	In front and back servo, The Y axis motor	W	80
Machine Size	Machine Tool Profile size L*W*H	mm	2950 x 2400 x 1900
	Weight	kg	≈3700

Product Category
One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
-Technically training
On-site installation and commissioning and sample testing, one-to-one, hand-to-hand teaching, remote VR technical support, etc.
-Maintenance
Complete machine warranty for one year, lifelong maintenance, after-sales maintenance. Provide solutions within 12 hours and send field technical solutions within 48 hours.
-24/7 with customer support
We provide exclusive solutions and timely technical support for 7X24 hours online video guidance to help you improve productivity and solve your processing problems.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.

---
