Reliable Industrial Servo Motor for Commercial Door Systems Precision Servo Motor

Product Description

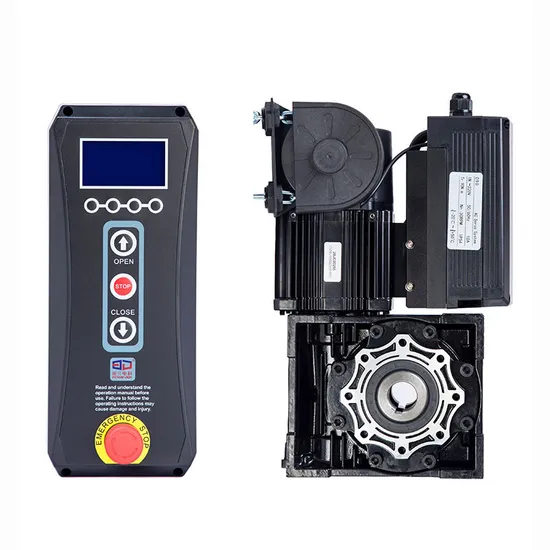

Control Box: The essential brain behind seamless industrial door operations, ensuring smooth and efficient functionality.
Configuration Model: Unleash the power of precision with our Industrial Door C40 Model.
Rated Torque: Feel the strength with a robust 40N.M, ensuring reliable and powerful performance.
Display Screen: Navigate with ease using our dual-language LCD screen, available in both Chinese and English.
Motor Group: Engineered for excellence, the powerhouse for your high-speed doors.
Configuration Model: Industrial Door C40 Model, designed for ultimate efficiency and control.
Input Power: Depend on single-phase AC200-240 for consistent and reliable energy supply.
Standard Line Length: Reach further with a generous 5M standard line length, ensuring flexible installations.
1.Basic Information: Your go-to guide for understanding the essentials of our advanced technology.

model	C40 Series
materials	stainless steel
Open style	roll
special function	safety
location	industrial engineering
origin	China
guarantee	1year
type	roll
Opening type	power wheel drive
colour	silver
surface treatment	accomplish

2.Product Description: Unveil the excellence of our high-speed door servo control system, a marvel of modern engineering.
Product Name: High-speed Door Servo Control System - The pinnacle of performance in industrial applications.
Characteristic 1: Dustproof - Keep operations clean and efficient, unhindered by dust.
Characteristic 2: Waterproof - Designed to resist the elements, ensuring durability and longevity.
Characteristic 3: Low Temperature Resistant - Performs flawlessly even in the most frigid conditions.
Characteristic 4: High Temperature Resistant - Maintains superior performance in extreme heat.
3.Industrial Door Control Box Size Line Diagram: Detailed schematics for precision installation and integration.
4.Industrial Door Electric Unit Size Line Diagram: Comprehensive sizing information for flawless electric unit setup.
5.Industrial Door Series Specification/Application Guide: A comprehensive guide to harnessing the full potential of our industrial door series.

Basic parameters	C40 model
Output rated torque	40N.m
Motor power	550W
Reducer specifications	RV50 1:60
Output rated speed	40 rpm
Maximum adaptation area	20
Input power	single-phase AC200-240
Input power	frequency 50/60Hz
Input current	4.8A
Maximum limit turns	50
Motor IP grade	IP54
Hand zipper length	4m(longest extended to 8m)
Standard line length	5m
Working environment temperature	-20 ºC-50 ºC
Maximum number of runs per hour	10

Features
viewing screen	LCD Display(Chinese and English)
Limit mode	electronic limit
Slow start and slow stop function	standard
Self-test Self-test function	standard
Active maintenance reminder	standard
RS485 communication	optional
Various operation modes	electric/inching/hand zipper

Control Panel Features
Door opening speed setting	stepless speed regulation
Door closing speed setting	stepless speed regulation
Opening deceleration interval setting
Closing deceleration interval setting
Automatic door closing delay time (seconds)	prohibited -240s
Safety signal failure height setting
Operation status display selection

Control Panel Extensions
Fault tips
Data statistics
Historical Fault Query
Maintenance Reminder
Reverse motor operation
Interface logic switching (NC/NO)

Control box interface
Manual door opening signal input
Manual Door Shutdown Signal Input
Manual stop signal input
Reversal door opening action of safety	protection signal input
Door signal input
Emergency stop input
Programmable relay output	2 groups

Industrial K Fast Door C40: Experience unparalleled speed and efficiency with our top-of-the-line model.

---
