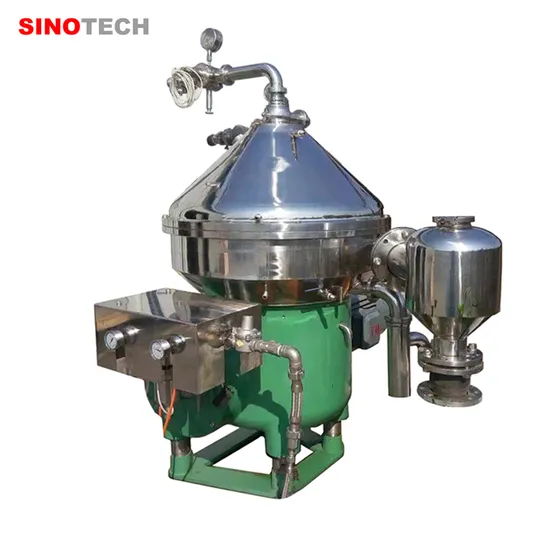

Dhc360 Cellulose and Derivatives Disc Centrifuge with Explosion Proof Motor

Product Description

DHC360 Disc Centrifuge Separator Main Features:
It can realize liquid-solid separation. This machine has better separation. It can be operated manually or automatically or remotely with PLC control to timer the process of working and solid discharge to save lots of labour work. It is simple in structure and easy in maintenance.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle:
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Technical Parameters:

Model	DHC220	DHC270	DHC360	DHC470	DHC550
Capacity(L/H)	1000	2000	3000	7000	>10000
Motor(kw)	4	4	7.5	15	22
Weight (kg)	580	600	1000	1720	2500
