Automatic Creasing and Die Cutting Machine (E series)

Product Description

Use:
we designed 1050E Automatic Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence. This machine adopts numerous advanced pneumatic and servo driving processing technology from abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable. It could creasing and die cutting after printing products, such as more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on. Good quality and design makes machine work stably and safety when machine's speed reach 7500 sheets/h. This machine will provide you to enjoy the comfortable operation and faster return on investment.
Featrues:

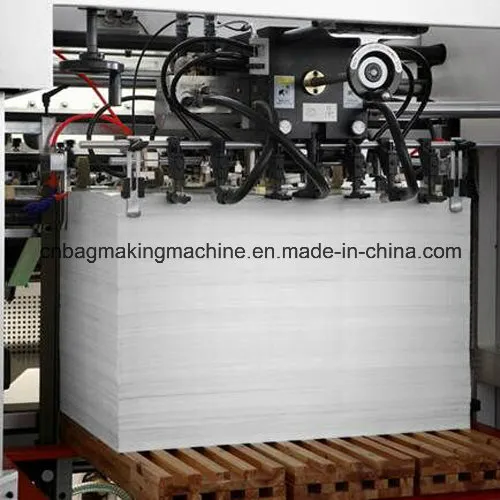

1. Feeder/Feeding Section The design of stacker preparatory stage was improved, it could use prepared car sheet piling. Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly. 2. Feeding Positioning Section The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper's location. 3. Die Cutting Section The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from drooping or separating effectively. 4. Delivery Section Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device.
Other important features: 1. Pneumatic Clutch
The imported high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed. 2. Lubrication System
With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the machine. 3. Air Pump
Adopt imported equipment, improve the stability of the machine, low noise, high performance, long service life. 4. Gripper and Chain The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die cutting and embossing, ect. at high speed. The adjustment mechanism, patent design guarantees very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.
Main Parameters:

Model	1050E
Max. Sheet Size	1050×750mm
Min. Sheet Size	400×360mm
Max. Cutting Range	1040×720mm
Inner Chase Size	1080×745mm
Die Cutting Steel Plate Size	1080×736mm
Paper Thickness	80-2000 g/m2 Cardboard
	Corrugated paper≤4mm
Min. Grabbing-sheet Width	9mm
Max. Mechanical Speed	7500 sheets/h
Max. Die Cutting Pressure	300T
Max. Feeding Pile Height	1350mm
Max. Delivery Pile Height	1200mm
Total Weight	16T
Dimensions	6300×4200×2100mm
Total Power	20kw
Voltage Requirements	380V 50Hz
Air compressor	0.8Mpa, 0.36m3/min, 3kw

Model	1060E
Max. Paper Size	1060X760mm
Min. Paper Size	400x370mm
Max. Cutting Size	1050×750mm
Max. Cutting Speed	7500 sheets/h
Die-Cutting Precision	±0.12mm
Paper Thickness	Cardboard 0.1-2.5mm, Corrugated paper≤4mm
Max. Working Pressure	280T
Total Power	16.25kw
Net Weight	15.2T
Overall Dimension	6850X3950X2160mm

---
