US$22,800.00-23,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Concrete Mixing Truck
Machining Process
Hydraulic
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Actual Mixing Capacity
3.5cbm
Rotary Drum Capacity
3.6cbm
Slump of Concrete
70-260mm
Min Steering Radius
4500mm
Maximum Load Capacity
7800kg
Whole Machinery Weight
15300kg
Transport Package
Nude Package
Specification
6650*2600*3200mm
Production Capacity
300sets/Month
Product Description

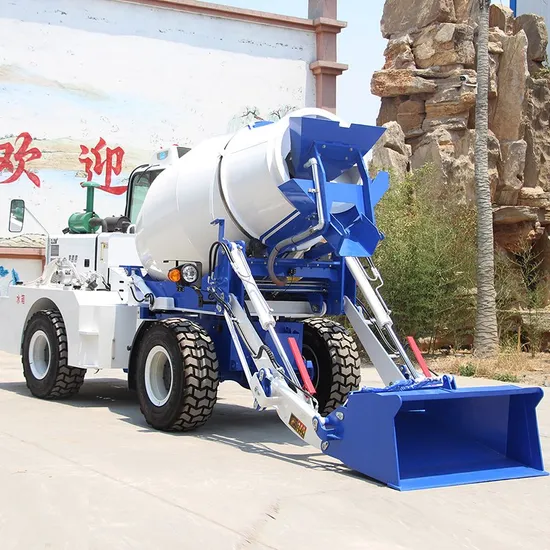

3.5CBM Self Loading Concrete Mixer Truck Production Characteristic
Italy Leading Design, Automatic Feeding Mixing System
Simple And Convenient Operation
High-Efficiency Output, Save Time And Labor Save Cost
The Perfect Combination Of Mixing Truck And Loading Car
Self Loading Concrete Mixer Advantage:
The Independent water pump is convenient to work
Independent can body motor heat dissipation, extended continuous working time
Increase the water tank to meet the needs of the water shortage environment
The 360-degree camera has a wider working field of vision
The forward tilting unloading function makes the unloading more thorough and faster
Technical Parameter
Specifications
| Unit
| Parameter
|
Model
| /
| 3.5CBM
|
Actual stirring capacity
| m³
| 3.5
|
Rotary drum capacity
| m³
| 3.6
|
Degree of bias
| °
| 16
|
Rotational speed
| r/min
| 10-20
|
Direction of rotation
|
| Feed:clockwise output:counter clockwise
|
Mixing drum blade
|
| Two sets of spiral blades and four sets of auxiliary blades
|
Slump of concrete
| mm
| 70-260
|
Hydraulic Power Transmission System
|
Pump model
|
| CBGV-4025
|
Hydraulic motor model
|
| BM5-400
|
Reducer ratio
|
| 01:24
|
Water Supply
|
Tank capacity/ water supply form
| L
| 540/ automatic timing water supply mechanism with automatic timing
|
The main performance parameters of the chassis and the main performance parameters of the engine
|
Engine type / displacement
| L
| CF4C100T-Z-13B2
|
model
|
| Straight injection type four-stroke water-cooled supercharged diesel engine
|
Rated power
| kw/r/min
| 91KW/2600
|
Max torque
| N.m/r/min
| 380/1500-1800
|
Max running speed
| km/h
| 24
|
Min steering radius
| mm
| 4500
|
Climbing capacity
| %
| 26
|
Tire
|
| 16/70-20
|
Driving way
|
| 4×4
|
Weight
| kg
| 7500
|
Maximum load capacity
| kg
| 7800
|
Whole machinery weight
| kg
| 15300
|
Overall size(L*W*H)
| mm
| 6650*2600*3200
|
The wheelbase
| mm
| 3000
|
Bucket capacity
| m³
| 0.6
|
Product Details
Mixer truck adapted air brake, more safety.
Automatic feeding concrete mixer truck Product details
Self Loading concrete mixer truck 3.5cbmOne set of 3.5cbm concrete mixer truck can be loaded in 40HQ container
Construction SiteCompany ProfileCertifications
Hengwang concrete mixer trucks have CE Certification.
>>
